14/2 Solid Fire Cable Red 500' Pull Box
BRAND
Genesis Cable
SES #
HCA 43135004
MFG #
43135004
UPC
619172017060
Your Price
Usually ships between 3-7 business days

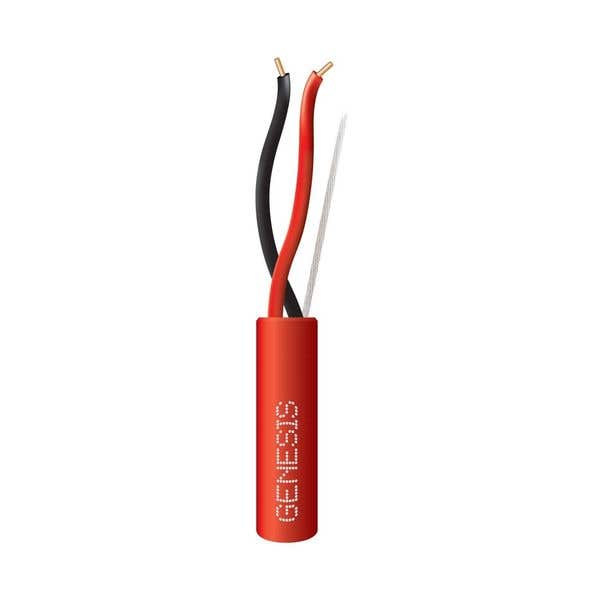

This Genesis® cable features 2 solid 14 AWG copper conductors and a riser rating. Choose this cable for a dependable fire alarm system wiring solution.
Cable Rating
Riser
Cable Listing
FPLR, CL3R, FT4, Sunlight Resistant
Wire Gauge (AWG)
14
Solid or Stranded
Solid
Number of Strands
1
Conductor Material
Bare Copper
Number of Conductors
2
Conductor Insulation Material
Polypropylene
Insulation Colors
Black, Red
Shielding
No
Rip Cord
Yes
Jacket Material
PVC
Nominal Outer Diameter
0.192 in.
Rated Voltage (Max)
300 Volts
DC Resistance (Max)
2.57 Ohms / 1000 ft. at 20 °C
Capacitance (Nominal)
24.1 pF / ft.
Impedance (Nominal)
63 Ohms
Velocity of Propagation
0.67
Temperature Rating (Max)
75 °C
Temperature Rating (Min)
-20 °C
Product Length
500 ft
Length Per Unit
500 ft.
Package Quantity
1
Cable Packaging
Reel
Package Length
11.75 in
Package Width
11.75 in
Package Height
7.25 in
Product Weight
16.1 lb
