16/4 Stranded Jacketed White 500'Box Contractor Audio Cable
BRAND
Genesis Cable
SES #
HCA 52515501
MFG #
52515501
UPC
619172048385
Your Price
Usually ships between 3-7 business days

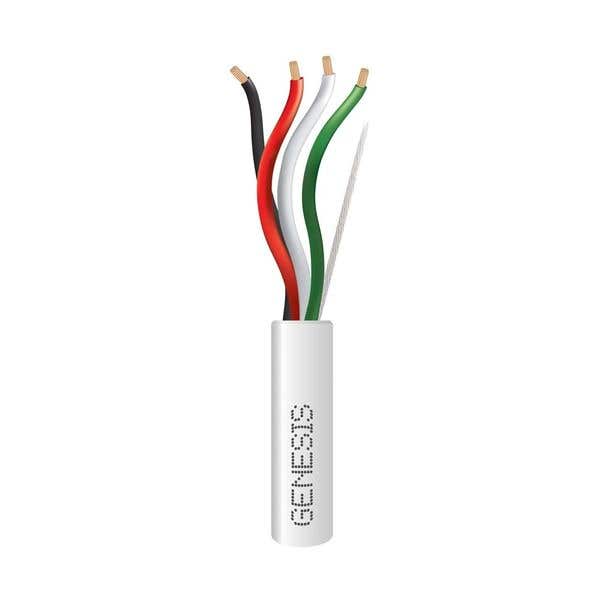

This Genesis® cable features 4 stranded 16 AWG copper conductors and a riser rating. Choose this cable for a dependable speaker/audio wiring.
Cable Rating
Riser, FT4
Cable Listing
CL3R, CMR, FT4, Sunlight Resistant
Wire Gauge (AWG)
16
Solid or Stranded
Stranded
Number of Strands
26
Conductor Material
Bare Copper
Number of Conductors
4
Conductor Insulation Material
Polypropylene
Insulation Colors
Black, Red, White, Green
Shielding
No
Rip Cord
Yes
Jacket Material
PVC
Nominal Outer Diameter
0.214 in.
Rated Voltage (Max)
300 Volts
DC Resistance (Max)
4.19 Ohms / 1000 ft. at 20 °C
Capacitance (Nominal)
22.5 pF / ft.
Impedance (Nominal)
68 Ohms
Velocity of Propagation
0.67
Temperature Rating (Max)
60 °C
Temperature Rating (Min)
-20 °C
Product Length
500 ft
Length Per Unit
500 ft.
Package Quantity
1
Cable Packaging
Pull Box
Package Length
11.75 in
Package Width
8 in
Package Height
11.75 in
Product Weight
20.9 lb
