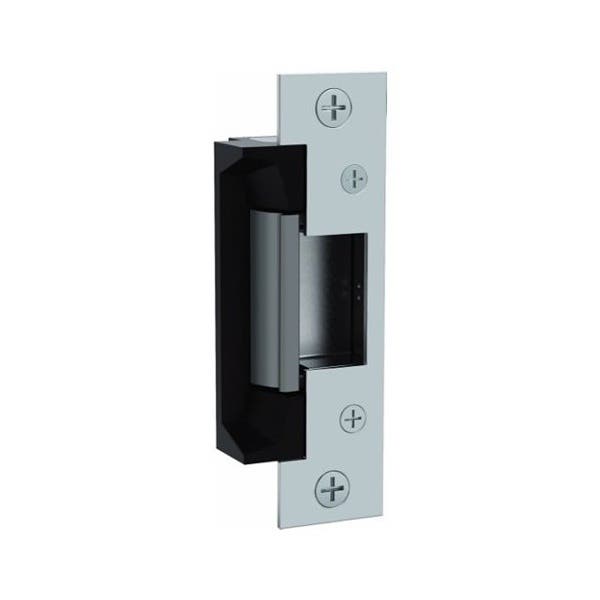

5200 COMPLETE STRIKE KIT W/ LATCH BOLT MONITOR
BRAND
HES
SES #
HES 5200C12/24DLBM
MFG #
10590411
UPC
740090043500
Your Price
Usually ships between 3-7 business days
- Frame application
- Metal
- Wood
- Electrical
- .24 Amps at 12 VDC/VAC
- .12 Amps at 24 VDC/VAC
- DC continuous duty/AC intermittent duty only
- Standard Features
- Tamper resistant
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles
- Field selectable fail secure/ fail safe
- Dual voltage 12 or 24 VDC/VAC
- Non-handed
- Internally mounted solenoid
- Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)
- Strike body depth 1-1/16"
- Plug-in connector
- Trim enhancer included
- Five year limited warranty
- Optional Features
- LBM - Latchbolt monitor
- LBSM - Latchbolt strike monitor
- Finishes
- 630 - Satin stainless steel
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 613 - Bronze toned
- 629 - Bright stainless steel
- BLK - Black
- *Complete Pacs are only available in the 630 finish
- Certifications and Listings
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- ANSI/BHMA A156.31, Grade 1
