12/24VAC/DC STRIKE MORTISE LOCKS FAIL SAFE/SECURE 630
BRAND
HES
SES #
HES 8500-630
MFG #
10700401
UPC
740090010687
Your Price
Usually ships between 3-7 business days

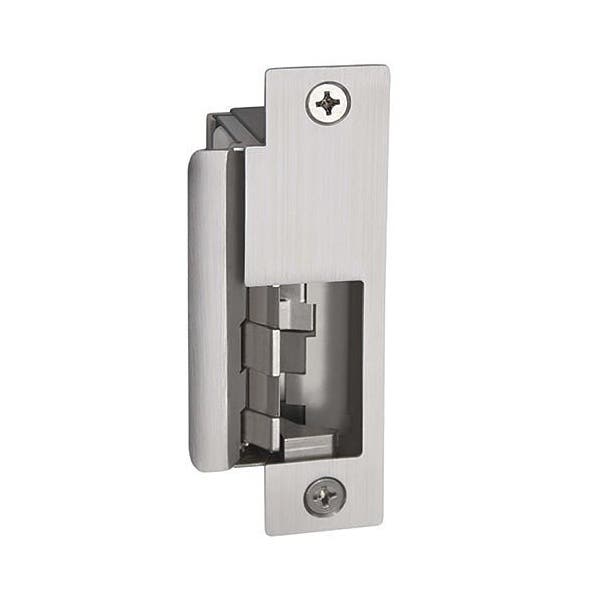

The 8500 series is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with mortise locksets without a deadbolt. Designed for fast, convenient installation, the 8500 installs with little or no modification to the frame. Simply remove the existing strike plate, remove the dust box and install. Its strength is derived from a unique keeper pin locking design, enabling the 8500 to exceed Grade-1 ratings. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8500 accommodates mortise latchbolts up to 3/4" throw.
- Frame application
- Metal
- Wood
- Electrical
- .24 Amps @ 12VDC
- .12 Amps @ 24VDC
- DC continuous duty/AC intermittent duty only
- Standard Features
- No cutting of the face of the frame
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 500,000 cycles
- Field selectable fail safe / fail secure
- Dual voltage 12 or 24 VDC/VAC
- Non-handed
- Metal or Wood Frame
- Internally mounted solenoid
- Accommodates 3/4" mortise latchbolts
- Strike body depth 1-5/16"
- Plug-in connector
- Full pocket shims for horizontal adjustment
- Five year limited warranty
- Optional Features
- 4 faceplate options
- Three deadlatch platforms to work with all major mortise locksets
- LBM - Latchbolt Monitor
- LBSM - Latchbolt Strike Monitor
- Finishes
- 630 - Satin stainless steel
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 613 - Bronze toned
- 629 - Bright stainless steel
- Certifications and Listings
- UL 10C-fire-rated, 3 hour (fail secure)
- CAN4-S104(ULC-S104) fire door conformant
- NFPA 80-07 Compliant
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- ANSI/BHMA A156.31, Grade 1
- NFPA -252 fire door conformant
- ASTM-E152 fire door conformant
