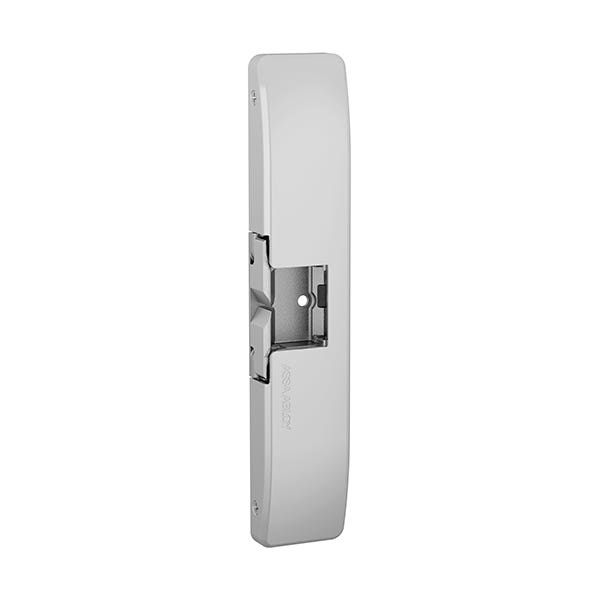

9600 STRIKE W/LATCH BOLT 630 FINISH
BRAND
HES
MFG #
9600-630-LBM
SES #
HES 9600LBM
UPC
740090010236
Your Price
Usually ships between 3-7 business days
- Frame application
- Wood
- Electrical
- .45 Amps at 12 VDC continuous duty
- .25 Amps at 24 VDC continuous duty
- Standard Features
- Installs in metal or wood frames
- Separate base and cover for easy adjustments
- Stainless steel construction
- Tamper resistant
- Static strength 2,500 lbs.
- Dynamic strength 120 ft-lbs.
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Dual voltage 12 or 24 VDC
- Horizontal adjustment
- Non-handed
- Internally mounted solenoid
- Accommodates up to 3/4" Pullman latch
- Five-year limited warranty
- Optional Features
- LBM - Latchbolt monitor
- LBSM - Latchbolt strike monitor
- Finishes
- 630 - Satin stainless steel
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 613 - Bronze toned
- 613E - Dark oxidized satin bronze
- 629 - Bright stainless steel
- Certifications and Listings
- ANSI 250.13-2003 Severe Windstorm listed
- Florida Building Code Approved (FL#14307)
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- ANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732, #E09373)
- RoHS compliant
- Metal
