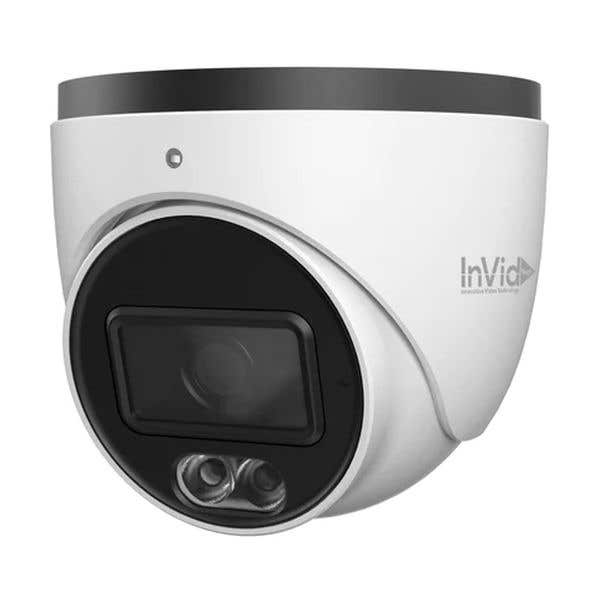

5MP IR Outdoor Turret Camera NDAA Compliant
BRAND
InVid Tech
SES #
IVT PAR-P5TXIR28NHWL
MFG #
PAR-P5TXIR28NH-WL
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
5 Megapixel Outdoor Turret, White Light Range up to 98’, True WDR, Audio Input, Built-in Mic, SD Crd Slot, 12VDC/PoE
- 5 Megapixel Resolution
- Fixed Lens
- True AI Human and Vehicle Classification for Line Crossing
- and Intrusion Detection
- Facial Recognition Capable with Compatible NVR
- White Light up to 98’
- H.265+,H.265,H.264+,H.264,MJPEG Compression
- 30 FPS Recording and Live
- True WDR
- SD Slot for Local Storage: Up to 256GB
- Audio Input: Built-in Mic
- IP67 Weatherproof
- 12VDC/PoE Operation
- ONVIF
- Supports Native Chrome/EDGE Use
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
Image Sensor
1 / 2.7 "CMOS
Image Size
2592 × 1944
Electronic Shutter
1s ~ 1 / 100000 s
Iris Type
Fixed Iris
Min. Illumination
0 lux (LED ON)
S/N Ratio
≥50dB
Lens
2.8 mm@F1.0, horizontal FoV: 94.8°; vertical FoV: 78.4°; diagonal FoV:107.3°
Focus
Fixed
Lens Mount
M12
Wide Dynamic Range
120dB
BLC
Yes
HLC
Yes
Defog
Yes
Digital NR
3D DNR
Angle Adjustment
Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°
Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression Standard
Baseline Profile/Main Profile/High Profile
Resolution
5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440), 3MP (2304× 1296 ),1080P (1920×1080), 720P (1280×720 ), D1, CIF, 480×240
Main Stream
5MP/4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Sub Stream
720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Third Stream
D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Bit Rate
64 Kbps ~ 8 Mbps
Bit Rate Type
VBR / CBR
Audio Compression
G711A / U
Image Settings
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR,etc. adjustable through client software or web browser
ROI
Each ROI to be configured separately
Network
RJ45
Video Output
No
Audio
1CH audio input; 1 CH built-in MIC
Storage
Built-in micro SD card slot; up to 256GB
Reset
Yes
Alarm
No
Perimeter Protection
Line crossing, intrusion (human/motor vehicle/non-motor vehicle classification)
Target Counting
Line crossing human/motor vehicle/non-motor vehicle counting
Exception Detection
Scene change, video blur and video color cast detection
Face Detection
Face detection and face capture
Remote Monitoring
Web browsing, CMS remote control
Online Connection
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS
Interface Protocol
ONVIF
Storage
Network remote storage; micro SD card storage
Smart Alarm
Motion detection, SD card error, SD card full
General Function
Watermark, IP address filtering, video mask, heartbeat, illegal login lock
PoE
Yes , IEEE802.3af
White Light Range
65~98’ (20~30 m)
Ingress Protection
IP67
Power Supply
DC12V/PoE
Power Consumption
< 7W
Operating Environment
-22°F~140°F (- 30 °C ~ 60 °C)
Humidity
less than 95 % (non-condensing)
Dimensions
Ø 3.7 x 3.3 in (94.6 × 82.8 mm)
Weight ( net )
Approx.1lb (0.46KG)
Installation
Ceiling mounting; Wall mounting
Certificate
CE, FCC
Environmental Protection
Complies with Directive EU RoHS, WEEE(2012/19/EU), directive 94/62/EC and REACH(EC1907/2006)
