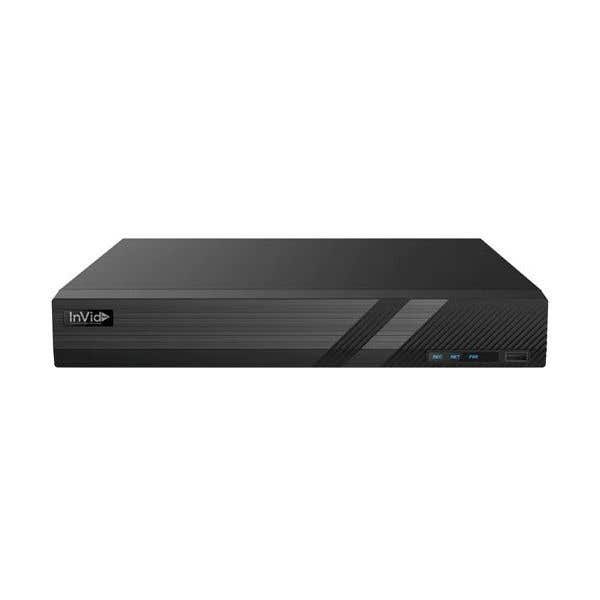

8CH + 4CH Bonus IP Hybrid Recorder - 1 HDD Bay - 4TB HDD Included
BRAND
InVid Tech
SES #
IVT PD1B-8NH/2TB
MFG #
PD1B-8NH/2TB
UPC
Your Price
Usually ships between 3-7 business days
- TVI/AHD/CVI: 5MP/4MP/1080p/720/WD1
- 4 Bonus IP Channels - Up to 5 Megapixel
- Total Max IP Input: 12 (Including Bonus IPC)
- H.264/H.265 Video Compression
- True P2P Connectivity with QR Code Connect
- Simultaneous HDMI/VGA up to 1080p Resolution
- CVBS Main or Spot Monitor
- Supports up to 8 Channel Simultaneous Playback
- 1 Hard Drive Bay
- Free Central Management Software (CMS)
- Free MAC Client
- NDAA Compliant Product
OS
Embedded Linux
Analog Video Input
BNC × 8; BNC interface (1.0Vp-p; 75Ω); TVI/AHD/CVI : 5MP/4MP/1080P/720P/WD1 (live)
IP Video Input
4CH; Up to 5MP@30fps
Total Input
12CH
Output
HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768; VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768; BNC × 1 : CVBS ( used as the main or spot output )
Compression
H.264/H.265
Multi-screen Display
1 /4/6/8/9/13/16
Input
RCA × 8
Output
RCA × 1 (linear, 600Ω)
Two-way audio
Take up channel one audio input
Compression
G.711(U/A)
Resolution
5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1/D1
Frame Rate
Analog Channel: 5MP Lite@10fps (PAL / NTSC) (1280 x 1936); 4MP Lite/1080P@12fps(PAL) / 15fps (NTSC); 1080P Lite/720P/WD1/D1@25fps (PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC)
Bit Rate
32Kbps ~ 4Mbps
Mode
Manual, timer, motion, smart event
Playback
8CH
Search
Time slice / time / event / tag search
Smart Search
Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Function
Play, pause, FF, FB, digital zoom, etc.
Mode
Manual, motion, exception, smart event
Input
8CH
Output
2CH
Interface
RJ 45 100Mbps × 1
Protocol
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Incoming Bandwidth
32Mbps
Outgoing Bandwidth
60Mbps
Client Connection
Max. 10 users access
OS
iOS, Andriod
HDD
SATA×1, up to 18TB; E-SATA×1 up to 18TB (Record Only)
Local Backup
USB, USB to HDD (Max 1TB)
Network Backup
Yes
RS 485
Yes (half-duplex), connect to PTZ or keyboard
USB
USB 2.0 × 2
Remote Controller
Included
Power Supply
DC12V/3A
Consumption
≤ 10W ( without HDD )
Dimensions ( W × D × H )
11.8 x 9.8 x 1.7 in (300 × 249 × 45mm)
Working Environment
14°F ~122°F (-10~50°C), 10%~90% (humidity)
Certificate
CE, FCC
Environmental Protection
Directive EU RoHS, WEEE, REACH
