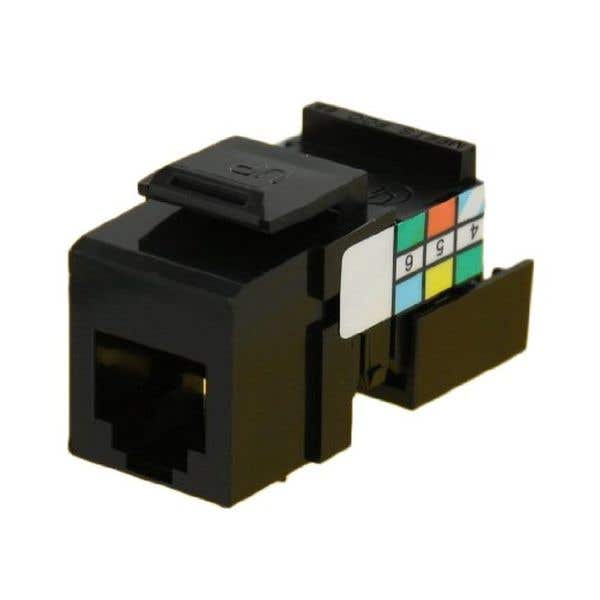

Leviton Voice Grade QuickPort Connector - 6P6C - Black

BRAND
Leviton
SES #
LEV 41106RE6
MFG #
41106-RE6
UPC
078477834251

Your Price

Usually ships between 3-7 business days

USOC and Voice-Grade modular connectors snap into the entire Leviton QuickPort family of workstation housings. These include Multimedia Outlet System (with QuickPort module adapter), Decora Inserts, patch panels, and patch blocks.The voice-grade connectors shall be individual snap in style. The connectors shall comply with all National Electrical Codes and ANSI/TIA-1096-A; UL listed; and CSA Certified. All plastics used in construction of the connector bodies shall be fire retardant, with a UL flammability rating of 94V-0. Termination of all connectors shall be 110-type (IDC) with solder-plated phosphor bronze contacts. The connector shall provide a ledge directly adjacent to the 110-style termination, against which the wires can be directly terminated and cut in one action by the installer. The voice-grade connector shall fit all other installed telecommunications wallplates, outlets, and field-configurable patch panels and patch blocks.
  • Exclusive cutting ledge combines termination and trim into one labor-saving step
  • Individual port configurability allows specification flexibility
  • Robust one-piece lead-frame design
  • Narrow connector allows high port density in a small area
  • Voice-Grade and USOC wire configuration labels
