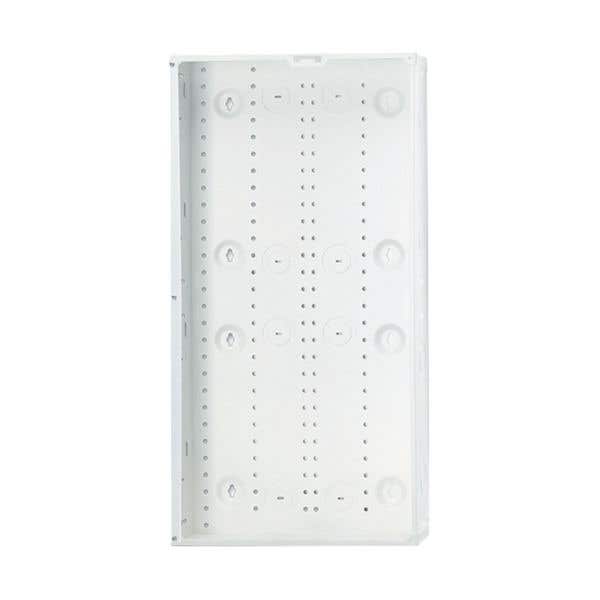

Leviton 28" Structured Media Enclosure
BRAND
Leviton
SES #
LEV 4760528N
MFG #
47605-28N
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
- Positive stops on housing side walls prevent enclosure from falling through studs during installation.
- One piece white steel unit hold full and half width expansion modules.
- Mounting guides on cover align screw-holes and reduce the chances of dropping during attachment.
- Multiple knock-outs on top and bottom including two new 2 Inch knock-outs on top, facilitate cable entry and routing.
- Cut-out in base of enclosure for mounting single gang J-Box kit.
- Six 3 Inch square self-healing foam grommets accommodate cable bundles.
Depth
3.85 Inch
Height
28 Inch
Width
14.38 Inch
Enclosure Material
Steel
Gauge of Steel
18 Gauge
Paint Finish
Powder-Coated
Knockouts
Multiple up to 2 Inch
Max. Module Capacity
8
Notes
Module count dependant of the type used
Depth
3.85 Inch
Gauge of Steel
18 Gauge
Height
28 Inch
Item
Enclosure Only
Max. Module Capacity
8
Notes
Module count dependant of the type used.
Paint Finish
Powder-Coated
Series
Series 280
Standards and Certifications
ACA/CULUS/UL/TIA/EIA/FCC
Warranty
2 Year Limited Plus
Width
14.38 Inch
ACA Listed
Yes
CULUS Listed
Yes
FCC Rated
Part 68
TIA/EIA
568-A 570-A
UL Listed
Fire and Burglary
