Linear AK-11 Exterior Digital Keypad - CAST Aluminum Enclosure
BRAND
Linear
MFG #
ACP00748
SES #
LIN AK11
UPC
093863115974
Your Price
Usually ships between 3-7 business days

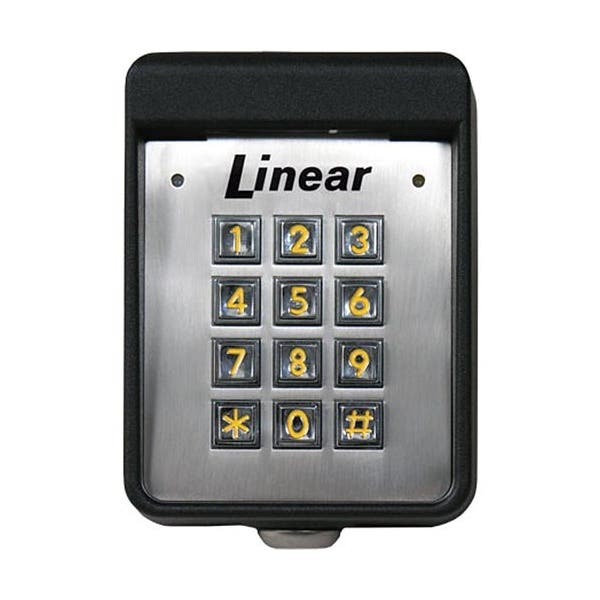

The Model AK-11 Exterior Digital Keypad is a digital keyless entry system designed for access control applications. The keypad is housed in a rugged cast aluminum enclosure that can be mounted to a pedestal or bolted directly to a wall. The die-cast keys have bright, easy-to-read yellow graphics.
- Get full control over access protection and ensure employees gain fast access with this keypad access device
- By using key code technology this keypad access device provides robust and affordable security
- Dramatically enhance the security of door with this keypad access device
- Keypad Access Device can be mounted as door-mountable
Dimensions
4.0" W x 5.5" H x 3.0" D (101.6 x 139.7 x 76.2 mm)
Voltage
12-24 Volts AC or DC (AC supply must be transformer isolated)
Main Relay
Form "C" 5 Amps @ 28 Volts maximum
Auxiliary
Relay Form "C" 1 Amp @ 28 Volts maximum
Solid State Outputs
Short-to-common 100 mA @ 24 VDC maximum
Temperature
-22° F to +149° F (-30° C to +65° C)
Humidity
5% to 95% non-condensing
