14" Enclosure with Screw-On Cover / Basic 6 x 4 Combo Module
BRAND
On-Q (Legrand)
SES #
ONQ EN1022
MFG #
EN1022
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days

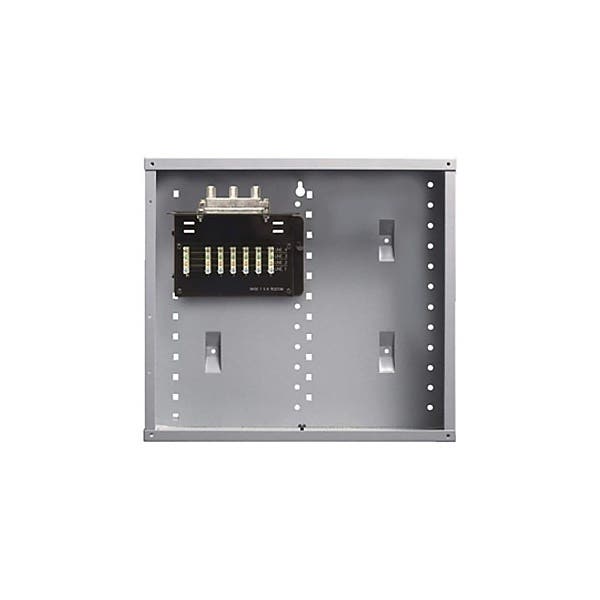

Kit includes a 14" enclosure and a 6x4 Basic Combination Module (364400-04) allowing distribution of up to six telecom outlets with up to four lines each and incoming video signals to up to four television outlets. The Kit features 18" of unused rail space for additional On-Q modules for system expansion.
- Space-saving combination module distributes telephone and video signals
- UL Listed
- Can be either surface-mount or flush-mount
- Integrated ground screw
- Central hub for distribution and management of incoming services
- Features 18" of unused rail space for additional On-Q modules for system expansion
- Cover included
Cable Type
Cat5e and RG6
Color
White/Black
Finish
Powder Coat
Type
Telecom/Video Module w/Enclosure
RoHS
Yes
CSA Listing Info
CSA-C22.2 No. 144.1 (2006), CAN/CSA-C22.2 No. 182.4-1990
CSA Standard
Yes
cULus
Yes
UL Listing No
ANSI/UL 1863, ANSI/UL 985, ULC-S545, ANSI/UL 1023
UL Standard
Yes
UN SPSC
43222819
Installation Location
In-Wall
Depth (Metric)
9.4 cm
Depth (US)
3.7"
Height (Metric)
35.8 cm
Height (US)
14.1"
Width (Metric)
36.3 cm
Width (US)
14.3 in
Connection Method
110 Punchdown and F
Humidity
90% Relative Humidity (Non-Condensing)
Material
CRS
Mounting
Surface or Flush
Operating Temperature (Celsius)
0°C to 50°C
Output And Line Out Connection
6 Telecom x 4 Video
