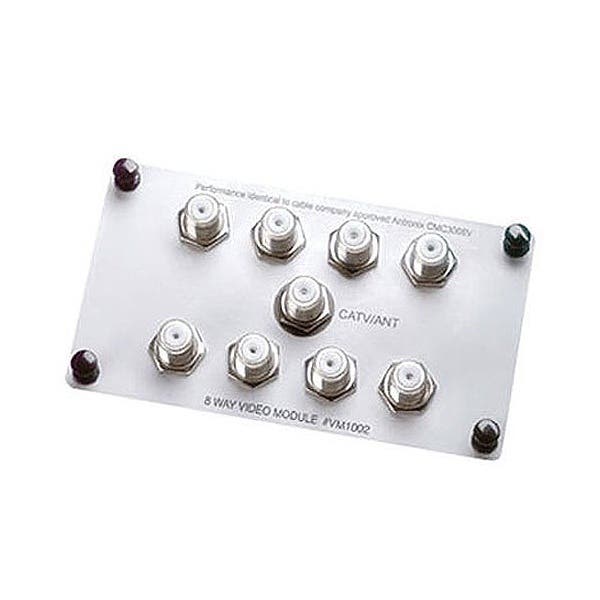

1 x 8 Enhanced Passive Video Splitter / Combiner - DC Passing - 1Ghz
BRAND
On-Q (Legrand)
SES #
ONQ VM1002
MFG #
VM1002
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
High-performance splitter designed for digital cable, On Demand, Pay-per-View and high-speed cable Internet.
- Ideal for use with digital cable TV or antenna.
- Bracket included.
- DC passing between all ports.
- Uses standard F type connectors.
- Handles up to eight outputs and one input.
- 1 GHz Bandwidth.
Color
Silver
Finish
Powder Coat
Footprint
Single Bay
Connection Type
F Connector
Type
Passive Splitter
Input Plug Type
F Connector
Surge Protected
Yes
Mounting Hardware Included
Yes
UN SPSC
32101529
Installation Location
Enclosure
Depth (Metric)
4.7 cm
Depth (US)
1.85"
Length (Metric)
16.3 cm
Length (US)
6.42"
Width (Metric)
9.1 cm
Width (US)
3.6 in
Bracket Required
101370-01 included
Connection Method
F
Frequency
5-1000 MHz
Material
18 Gauge CRS
Mounting
By bracket in enclosure
OhmValue
75
Operating Temperature (Celsius)
-40°C to 60°C
Product Fits Into
On-Q Enclosure
Shape
Rectangular
Typical Insertion Loss
11.1 dB
Typical Return Loss
23.1 dB
Number Of Receptacles
8
Surge Suppression
6 kV Ring Wave Surge per IEEE C62.41 Category A3 Compliant
