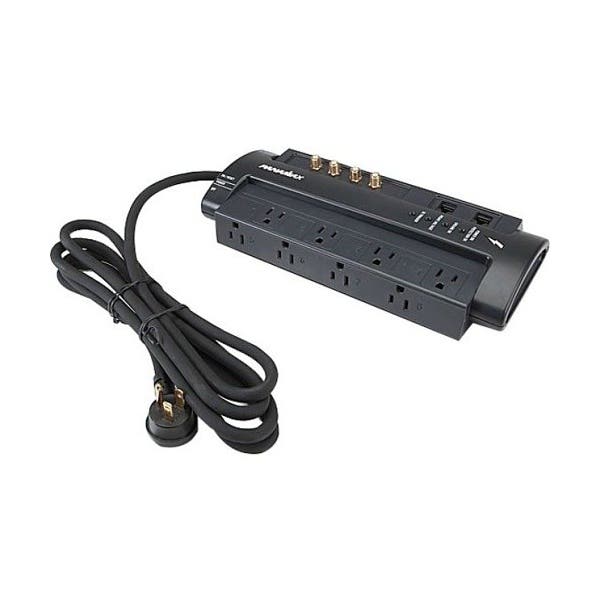

MAX 8 AV Pro 8 AC Coax andAVM, Line Filtration
BRAND
Panamax
SES #
PAN M8AVPRO
MFG #
M8-AV-PRO
UPC
050616008747
Your Price
Usually ships between 3-7 business days
M8-AV-PRO eliminates voltage irregularities & protects your AV system. Home Theater Power Management AC power, telephone and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. M8-AV-PRO eliminates voltage irregularities & protects your AV system. Reduces Cross-Contamination Between Components The M8-AV-PRO is designed to provide noise isolation between the two isolated outlet banks so that any noise created by an A/V component in one bank cannot contaminate the power to the equipment that is plugged into the other outlet bank. Monitors Incoming Line Voltage Panamax's patented AVM circuitry continuously monitors the incoming line voltage and disconnects your equipment in the event of an over voltage or undervoltage (brownout). Power is automatically reconnected when voltage returns to a safe level, eliminating service calls or system downtime Improves Picture and Sound Quality The M8-AV-PRO's Power Cleaning and Premium Filtration eliminate common symptoms of contaminated power (including loss of detail, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.
- Premium Filtration - Improves Picture and Sound. Provides clean power by filtering out noise common to household power.
- Coax/Sat Protection - Protects equipment from electrical surges that travel over Cable, Satellite, and Antenna lines.
- Telephone/LAN Line Protection - Protects equipment from electrical surges that travel over Telephone and network lines.
- AVM (Automatic Voltage Monitoring) - Protects equipment against prolonged over/ under voltages by disconnecting the power and reconnecting it when safe power returns.
- Surge Protection - Exclusive Protect or Disconnect circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment
- 12 Volt Trigger - Allows source equipment to activate or deactivate outlets 5-8 on the M8-AV-PRO.
- 8 Outlets - More outlets for all of your power needs
- Hi Def Ready - Hi-Def Designed to work with your High Definition system.
Family
Floor Models
Line Voltage
120 (Volts)
BlueBOLT Enabled
No
Number of Outlets
8
Outlet Descriptions
4 outlets filtered and surge protected4 surge protected high current outlets
Control
On/Off control to all outlets through power switch. The high current bank can be controlled by the low voltage trigger.
USB Charging
N/A
Low Voltage Trigger
12V In
AC Power Cord
8 ft. captive cord
Dimensions
12" L x 5" W x 1.75" H (12.5" L Including brackets)
Weight
3.5 lbs
AC Protection Technology
Protect or DisconnectAutomatic Voltage MonitoringL-N, L-G, N-G Protection ModesThermal Fusing
Automatic Voltage Shutoff
Yes
Undervoltage Shutoff
90 VAC ± 6 VAC
Over-Voltage Shutoff
142 VAC ± 8 VAC
Maximum Current Rating
15 (Amps)
Initial Clamping Level
200V Peak
Filtration Technology
Common Mode Filter Circuit
Filtration Rating
50 dB(100KHz - 1MHz)53 dB (100KHz - 1MHz)
Signal Line Protection
1 LAN/Tel2 Cable/Satellite
Shipping Info
Length: 11.8 (Inches)Width: 9.3 (Inches)Height: 2.4 (Inches)Weight: 3.45 (Lbs)
Unit of Measure
Each
UPC
050616008747
Master Pack Qty
6
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)
500V
UL991 Electronic Safety Circuit
Yes
Thermal Fusing
Yes
Response Time
< 1n
Peak Impulse Current
65,000 Amps
Patented Power Management Circuit
Yes
Wires Protected
Pins 1, 2, 3, & 6
Connectors
RJ-45 Shared with Telco
Connectors
Differential & Common Ground
Compatibility
10/100bT
Clamping Level
7V
Wires Protected
2 wire, 1 pair (4,5)
Suppression Modes
Metallic & Longitudinal
Fuseless / Auto-reseting
Yes
Connectors
RJ-45 Shared with LAN
Clamping Level
260V
Capacitance
30pf (approx.)
Shielded
Yes
Insertion Loss
< 0.5 dB
Frequency Range
5MHz - 2 GHz
Connections
Female "F", Gold Plated
Clamping Level
75V
Bidirectional
Yes
