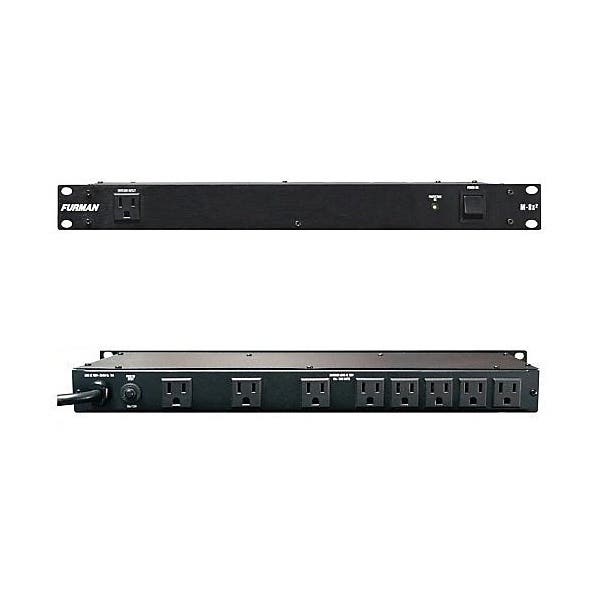

A Merit Series Power Conditioner is the perfect low-cost AC power solution for any rack mount system. Install an M-8x2 in to the top slot of your rack and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load. The M-8x2 is designed for applications where lights are not required.

M-8x2 Specifications:

• Maximum Output Current: 15 amps
• Line Cord: 6 ft. captive 14 AWG with 3-conductor plug
• Operating Voltage: 120VAC 60Hz
• Spike Protection Mode: Line to neutral
• Energy Dissipation: 170 joules
• Peak Impulse Current: 12000 amps
• Maximum Continuous Operating Voltage: 130 VAC RMS
• Let Through Voltage (@ 125 amps 8/20uS waveform) 400 volts
• Noise Attenuation: Transverse mode: Greater than 23dB 200Khz to 10 Mhz
• Dimensions: 1.75 H x 19 W x 3.75 D
• Weight: 4.9 lbs.
• Safety Agency Listing: cTUVus
• Warranty: Merit Series units are protected by a limited three year warranty covering defects in materials and workmanship.
