Power Mangement MR 4000
BRAND
Panamax
SES #
PAN MR4000
MFG #
MR4000
UPC
050616008921
Your Price
Usually ships between 3-7 business days
8 Outlet Power Management, specifically designed and engineered to provide protected and filtered power to your home theater system. Panamax's MR Family of products offers several layers of surge protection. Panamax's patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected. The other layer of surge protection Panamax offers is our exclusive Protect or Disconnect technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology. Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.
- Eight (8) Protected & Filtered Power Outlets
- Exclusive Automatic Voltage Monitoring (AVM)
- Protect or Disconnect Technology
- Panamax Level 2 Noise Filtration
- Antenna, Cable, or Satellite and LAN Signal Protection
- 8 ft. Power Cable with Low Profile Plug
Family
MR Series
Line Voltage
120 (Volts)
BlueBOLT Enabled
No
Power Factor Technology
No
Number of Outlets
8
Outlet Descriptions

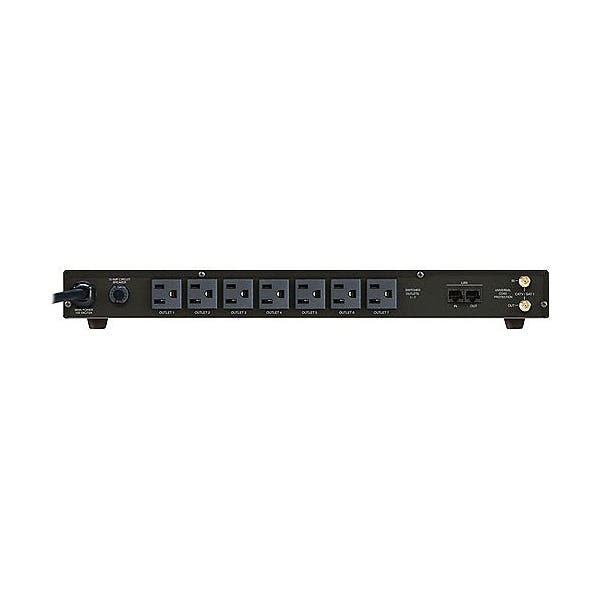

1 (filtered outlet, front panel)7 (filtered outlets, rear panel)
Rack Mountable
Yes
Rack Ears Included
Yes
Front Panel Meter(s)
No
Front Media Light(s)
No
Control
On/Off control to all outlets through front panel power button.
Voltage Regulation
No
Compliance
cCSAus
USB Charging
N/A
Low Voltage Trigger
N/A
AC Power Cord
8 ft. captive, with low profile plug
Dimensions
17"W x 6"D x 1.75" H, 2.19" H with feet
Weight
6.5 lbs
AC Protection Technology
Protect or DisconnectAutomatic Voltage MonitoringL-N, L-G, N-G Protection ModesThermal Fusing
Automatic Voltage Shutoff
Yes
Under-Voltage Shutoff
95V ± 2V
Over-Voltage Shutoff
140V ±4V
Maximum Current Rating
15 (Amps)
Initial Clamping Level
200V Peak
Filtration Technology
RFI/EMI Filtration
Filtration Rating
All Outlets:-30dB min. @ 100kHz-55dB min. @ 250kHz-45dB min. @ 500kHzMax filtration: -60dB @ 300kHz
Signal Line Protection
1 LAN, 1 Cable/Satellite
Shipping Info
Length: 19.6 (Inches)Width: 12.1 (Inches)Height: 4.9 (Inches)Weight: 6.7 (Lbs)
Unit of Measure
Each
UPC
050616008921
Master Pack Qty
4
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)
400V
Single Pulse Energy Dissipation
1350 Joules
Response Time
< 1ns
Peak Impulse Current
52,000 Amps
LAN - Wires Protected
8-Wires
LAN - Compatibility
10/100bT
LAN - Clamping Level
50V
Coax - Shielded
Yes
Coax - Insertion Loss
< 0.5 dB
Coax - HD 1080 i/p Ready
Yes
Coax - Frequency Range
0 MHz - 2.2 GHz
Coax - Connections
Female "F", Gold Plated
Coax - Clamping Level
75V
Coax - Bidirectional
Yes
