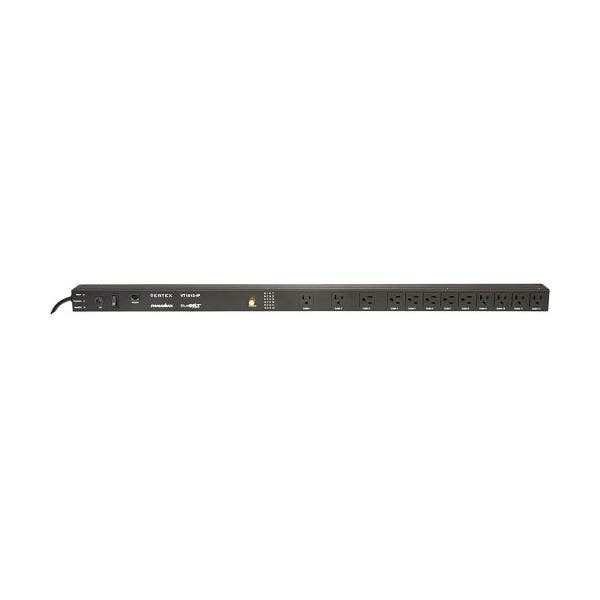

Panamax VT1512-IP Professional Home Theater Vertical Strip Style Power Distribution Unit - 15A
BRAND
Panamax
MFG #
VT1512-IP
SES #
PAN VT1512IP
UPC
050616010344
Your Price
Usually ships between 3-7 business days
The VT1512-IP is a BlueBOLT enabled slim form factor vertical rack power conditioner and power
sequencer. The VT1512-IP is a full featured power conditioner providing protection and filtration for maximum longevity and performance of connected equipment. BlueBOLT enabled, the
VT1512-IP allows remote reboot of 12 individually controlled outlets, as well as the ability to monitor energy use, set alerts, program scheduled commands, network pings with conditioner reboots. For non-Cloud applications the VT1512-IP has an embedded webpage for control and programming, or you can use a LAN for secure control via an ELAN or other 3rd party control systems.
- Protect-or-Disconnect surge protection
- Standard EMI/RFI Filtration
- Over/Under voltage load disconnect
- Power Sequencing
- IP Monitor & Control - BlueBOLT™ enabled for IP control and monitoring
- 12 individually controlled outlets, 3 spaced for wall-warts & 6 turned 90°
- Ground lug to attach Panamax signal-line protection modules
- Sleek design ideal for vertical mounting to an equipment rack with included brackets
- 10 foot power cord with removable plug to customize length
- 15A Capacity with circuit breaker
AC Power
120Vac, 50/60Hz
Total Outlets
12
Total Current Capacity
15A (1800W)
Voltage Protection Rating (UL 1449 4th Edition, 3,000A)
L-N 500V, L-G 500V, N-G 500V
Protection Modes
L-N, L-G, N-G
Initial Clamping Level
200 V Peak, 141 RMS
Energy Dissipation
668 Joules
Peak Impulse Current
12000
Protect-or-Disconnect
Yes
Thermal Fusing
Yes
Cord Length
Captive 10ft. cord with removable NEMA 5-15P for length customization
Dimensions
37” L x 1.75” W x 1.75” H
