25PK ezEX44 Shielded RJ45 Plug-External Ground-Clamshell
BRAND
Platinum Tools
SES #
PLA 100025C
MFG #
100025C
UPC
849160009979
Your Price
Usually ships between 3-7 business days

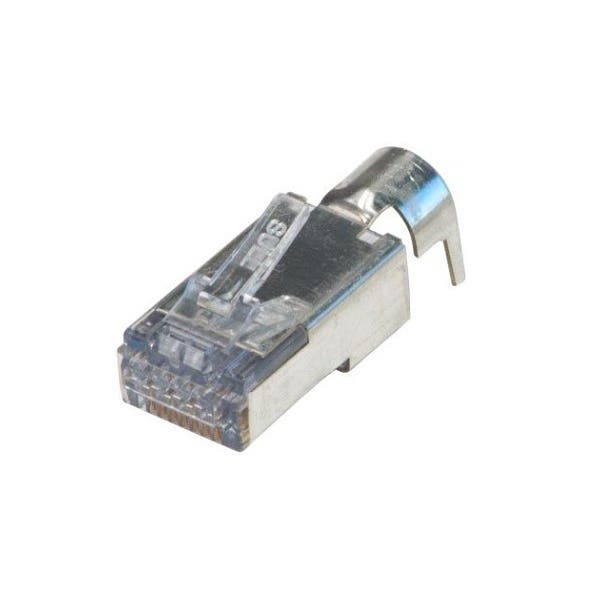

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows -˜big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame and EXO-EX Die (100061C).
- Hi-Lo stagger to isolate each conductor
- Simple one piece/pass through design, no bars or liners
- Shielded 5e/6/6A compliant
- Insulation Diameter (Conductor) - Size range: 0.039" - 0.044" (1.0 -1.12mm)
- Max Outer Diameter: 0.305" (7.75mm)
- 50 micron gold plated contacts
- Solid or Stranded 24-22 AWG
- TAA, TIA, RoHS, UL andamp; FCC compliant
- Made in the USA
