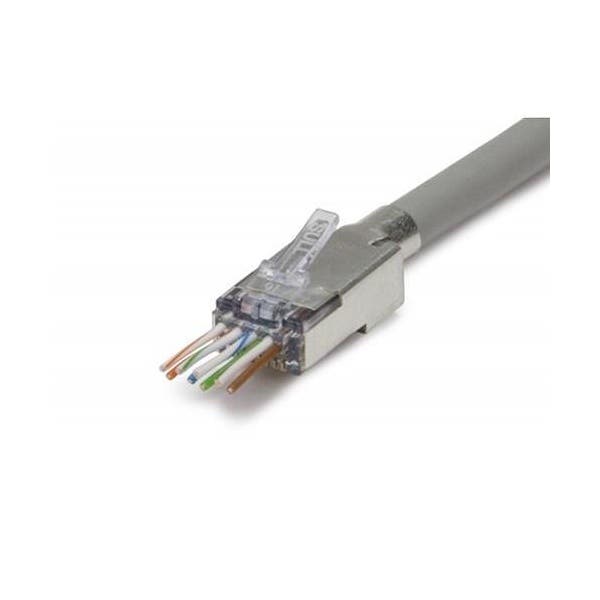

25pk ezEX48 Shielded Cat6A RJ45 Plug-Ext.Ground-Clamshell
BRAND
Platinum Tools
SES #
PLA 100027C
MFG #
100027C
UPC
849160009986
Your Price
Usually ships between 3-7 business days
This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows -˜big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6A and is terminated with EXO Crimp Frame and EXO-EX Die (100061C).
- Hi-Lo stagger to isolate each conductor
- Simple one piece/pass through design, no bars or liners
- Shielded 6/6A compliant
- Insulation Diameter (Conductor) - Size range: 0.043" - 0.048" (1.09 -1.22mm)
- Max Outer Diameter: 0.305" (7.75mm)
- Solid or Stranded 23-22 AWG
- 50 micron gold plated contacts
- TAA, TIA, RoHS, UL andamp; FCC compliant
- Made in the USA
