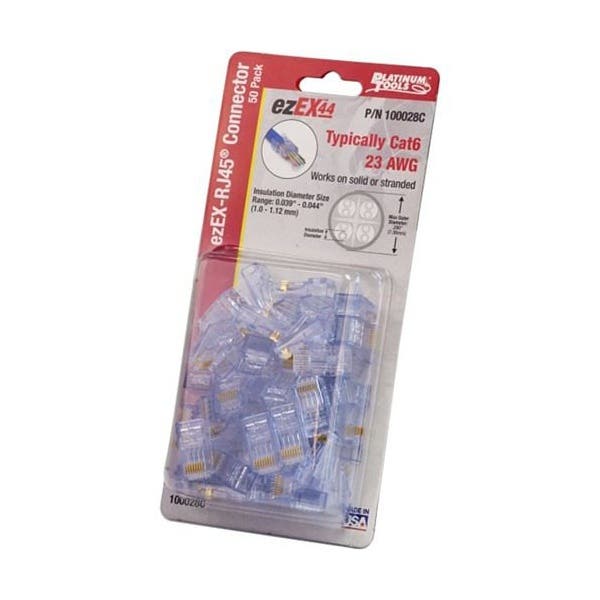

Platinum Tools 100028C ezEX44 RJ45 CAT6 Connector - 50-Pack
BRAND
Platinum Tools
MFG #
100028C
SES #
PLA 100028C
UPC
849160008613
Your Price
Usually ships between 3-7 business days
This RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows 'big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame and EXO-EX Die (100061C).
- Hi-Lo stagger to isolate each conductor
- 50 micron gold plated contacts
- Solid or Stranded 24-22 AWG
- Simple one piece/pass through design, no bars or liners
- Insulation Diameter (Conductor) Size range, .039" - .044" (1.0 -1.12mm)
- Max Outer Diameter .290" (7.36mm)
- 5e/6/6A compliant
- TIA, TAA, RoHS, UL and FCC compliant
- Typically used with Cat6
- Made in the USA
