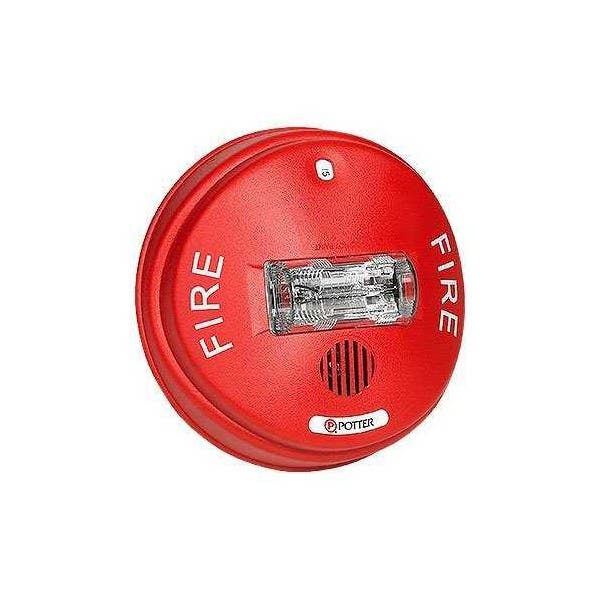

Potter CHS-24W CHS Series 24V Selectable Candela Ceiling Mount Horn Strobe

BRAND
Potter
MFG #
4890041
SES #
POT CHS-24W
UPC
700217037867

Your Price

Usually ships between 3-7 business days

The Potter CHS Series is a ceiling mount strobe or horn/strobe combination that offers dependable audible and visual alaRMS and the lowest current consumption. The CHS offers tamperproof field selectable candela options of 15, 30, 75, 95, 115 and 150 candela.The CHS horn offers a continuous or synchable temporal three in 2400Hz and mechanical tone. All tones are easy for the professional to change in the field by using switches. The models are shipped from the factory in the temporal three alarm mode. The Ceiling Mount Series comes standard with the 4" mounting plate which incorporates the popular Super-Slide® feature that allows the installer to easily test for supervision. The product also features a locking mechanism which secures the product to the bracket without any screws showing. The CHS also features the patented Checkmate® - Instant Voltage Verification feature which allows the installer to check the voltage drop draw without removing the signal.

  • Nominal voltage 24V DC
  • Tamperproof field selectable candela options 15, 30, 75, 95, 115 & 150
  • Super-Slide Bracket - Ease of Supervision Testing
  • Checkmate® - Instant Voltage Verification
  • Synchronize strobe and/or horn with Gentex AVSM Control Module
  • Prewire entire system, install mounting bracket, then install signals
  • Documented lower installation and operating costs
  • Input Terminals 12 to 18 AWG
  • Switch Selection for High or Low dBA
  • Switch Selection for 2400Hz or mechanical Tone
