8 ZONE CONV PANEL
Your Price
Usually ships between 3-7 business days

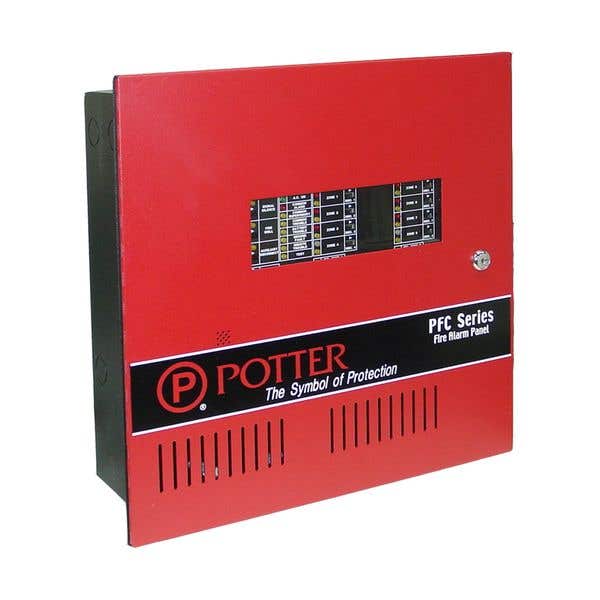

Potter's PFC-5008 Fire Alarm Control Panel is a microprocessor based unit designed for small to medium commercial, residential, multi-family, institutional and industrial occupancies. Fully configurable using DIP switches, it enables the user to configure the system to meet their specific requirements. The PFC-5008 is a PFC-5004E with the ZA42 expansion card factory installed. In addition, the preassembled kit contains a UDACT-9100 for digital communications.
The PFC-5008 comes standard with 8 Class B (Style B) Initiating Circuits which may be configured as 4 Class A (Style D) circuits. In addition, it comes equipped with 4 Class A/B (Style Z/Y) Indicating circuits which are each rated at 1.7 amps. The panel also includes a 5 Amp Power Supply which powers the system and supplies a 4-wire resettable regulated smoke power supply of 24 VDC 100mA maximum.
- 8 Class B (Style B) 4 Class A (Style D) Initiating Circuits 4 Class A (Style D) circuits.
- Predefined Initiating Circuits can be configured as Waterflow or Latching/Non- Latching Supervisory
- Selectable Alarm Verification on Initiating Circuits
- Zone Disconnect Switches
- 5 Amp Power Supply
- 4 Class A/B (Style Z/Y) Indicating Circuits (1.7 Amps max. per circuit.)
- Audibles may be configured as Steady, Temporal Code, California Code, or March Time
- Auto Signal Silence
- Auxiliary relay contacts for Common Alarm, Common Trouble, and Common Supervisory.
- Built-in RS-485 Interface for RA8F Multiplexed Remote Annunciators (Up to 3 Annunciators)
- Built-in Walk Test operation
- Output for 4-wire resettable regulated smoke power.
- Easy configuration via DIP switches
