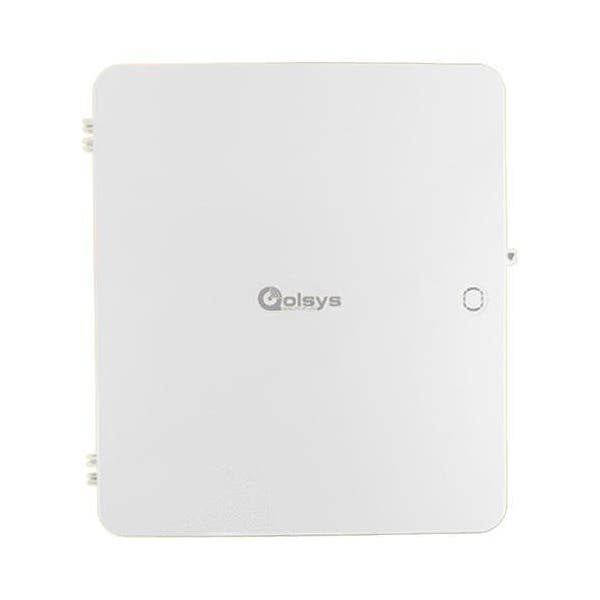

Qolsys QS7134-840 IQ Hardware 16-F - 16-Hardwired Zones Translator - Encrypted S-Line with Large Enclosure
BRAND
Qolsys
MFG #
QS7134-840
SES #
QOL QS7134-840
UPC
857497008435
Your Price
Usually ships between 3-7 business days
The IQ Hardwire 16-F (Large Enclosure) offers a cost effective way of integrating hardwired security & smoke detector zones with the IQ Panel 2. It includes a large enclosure with ample wire routing room, backup battery charging, 500mA of 12volt auxiliary power, an onboard siren relay, built-in status LED's for each zone and support for up to 10 two-wire smoke detectors. Normally Open and Normally Closed contacts are supported as well as powered zones like motion sensors and glass break detectors.
- Large plastic enclosure with AleWiring room, backup battery holder, and an expansion slot for second module
- Encrypted S-Line sensor technology protects signals sent to the IQ PanelWhile still providing support for legacy 319.5 systems
- Supports up to ten twoWire smoke detectors
- LED lighted zones for ease of "learn-in" installation/troubleshooting
- EOL supervision using 4.7K Ohm resistors (included) or 1k-10k Ohm depending on Resistor Mode
- Up to 500 Milliamps of power for hardwired motion detectors, glass break detector, and/or sirens
- Charging circuit for back-up battery, fully supervised with power outage recovery
