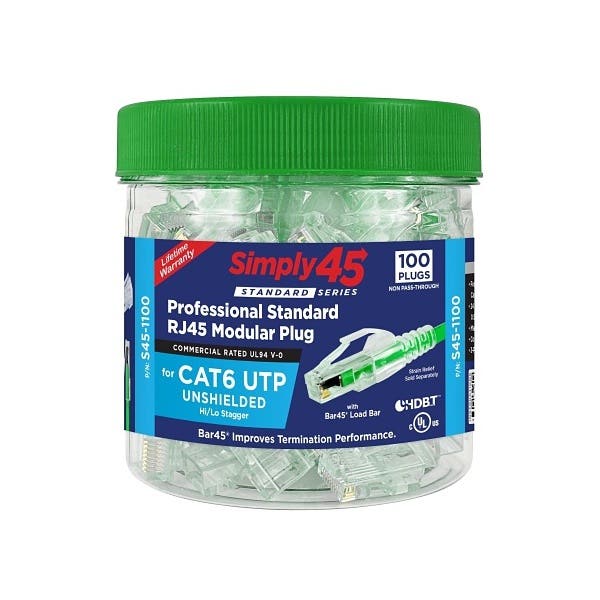

Simply45 S45-1100 CAT6 Unshielded Standard WE - SS Rj45 with Bars45 - 100-pack
BRAND
Simply45
MFG #
S45-1100
SES #
S45 1100
UPC
817777017748
Your Price
Usually ships between 3-7 business days
Simply45™ is the industry-leading brand for RJ45 modular plug innovation and performance solutions. Simply45™s S45-1100 Standard WE/SS (8P8C) RJ45 modular plugs incorporate the following feature: BarS45™ Load Bar. The Simply45™ BarS45™ are custom-designed load bars designed to match specific Simply45™ RJ45 modular plugs to improve termination performance and SIMPLIFY the termination process. The innovative BarS45™ for Simply45™s S45-1100 RJ45 is the easiest load bar ever for use with unshielded LAN cables such as Cat6 UTP.
- Contacts are plated with Gold
- Gold plated contacts provide smooth data transfer
- Ideal to be used with network cables
Performance
Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
Wire Cond(s) OD
23 AWG
Max LAN Cable OD
7.4mm (0.291")
Supports PoE/PoH
Yes
Cable Fire Resistance Ratings
Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
Flame Autoextinguish
UL94 V0, IEC 60695-11-10
Contact Material
Phosphor Bronze - .012" thick
Contact Plating
Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min
Plug Material
Polycarbonate
Plug Tolerances and Dimensions
Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
Conductor Type(s)
Solid and Stranded
Operating Temperature
-40º C to +70º C
Insertion/Extraction Life
2000 Minimum Cycles
Contact Resistance
20 Milli-Ohms max
Current/Voltage
30 VAC/42 VDC at 1.5 Amps
Compliance
UL Listed, RoHS, FCC, NEC
