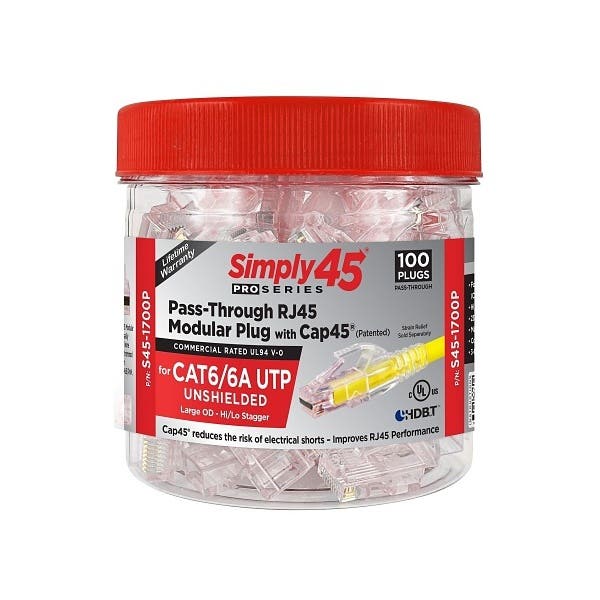

100pc/Jar -ProSeries Cat6/6a UTP-Pass through Red Tint
BRAND
Simply45
SES #
S45 1700P
MFG #
S45-1700P
UPC
817777017724
Your Price
Usually ships between 3-7 business days
Simply45 ProSeries Unshielded Pass Through RJ45 Modular Plugs with Cap45 for 23AWG Solid (Cat6/6a UTP), Hi/Lo Stagger, Wire Conductors 1.05mm-1.2mm/0.041"-0,047", Max Cable OD 7.4mm/0.0291", UL94 V0 Commercial Rated, Red Tint- 100pcs/Jar
Performance
Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
Wire Cond(s) OD
23AWG
Max LAN Cable OD
7.4mm (0.291")
Supports PoE/PoH
Yes
Cable Fire Resistance Ratings
Commericial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
Flame Autoextinguish
UL94 V0, IEC 60695-11-10
Contact Material
Phosphor Bronze - .012" thick
Contact Plating
Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min
Plug Material
Polycarbonate
Plug Tolerances and Dimensions
Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
Conductor Type(s)
Solid and Stranded
Operating Temperature
-40º C to +70º C
Insertion/Extraction Life
2000 Minimum Cycles
Contact Resistance
20 Milli-Ohms max
Current/Voltage
30 VAC/42 VDC at 1.5 Amps
Compliance
UL Listed, RoHS, FCC, NEC
