POLARIZED REFLECTIVE PHOTOBEAM SENSOR UP TO 33' RANGE
BRAND
Seco-Larm
MFG #
E-931-S33PRGQ
SES #
SCO E931S33PRGQ
UPC
676544017301
Your Price
Usually ships between 3-7 business days

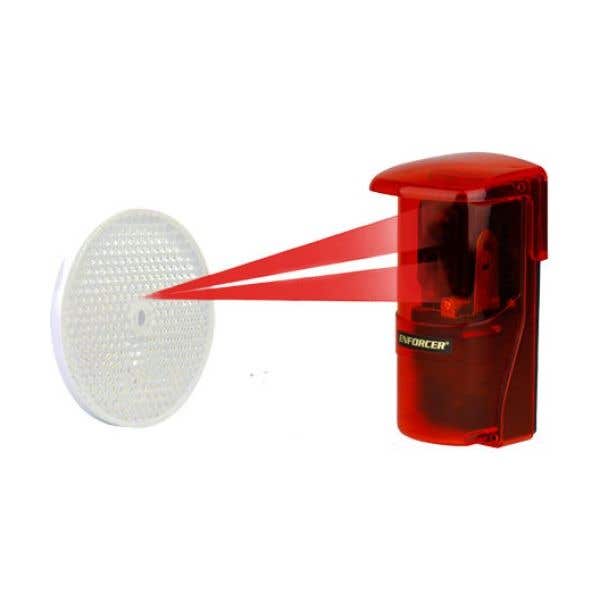

The E-931-S33PRGQ 33ft Polarized Reflective Photoelectric Beam Sensor provides reliable detection of shiny objects that could be missed by a non-polarized sensor.
- Polarized sensor is immune to shiny objects: triggers only when correctly reflected light is detected
- Weatherproof (IP55)
- Anti-condensation housing
- 12-30V DC/AC 60Hz, 100mA
- Up to 33ft (10m) sensing range
- Round reflector, Diameter: 3-1/4" (82mm)
- Form C relay: 500mA@30VAC/VDC
- Beam status LED
- Compact size: 4-13/16"x2-3/8"x2-7/16" (122x60x62mm)
- N.C. Tamper switch: 500mA@30VAC/VDC
- Monitored Outputs:
- N.C.
- 10kΩ Resistor
- Hood included for both sensor and reflector
- Typical Applications:
- Sensor for garage doors, outdoor gates or overhead doors
- Sensor for industrial automation to detect objects on manufacturing line
Type
Polarized reflective photoelectric beam sensor
Current Draw
Standby- 55mA@12VDC, Active- 40mA@12VDC
Sensing Range
Up to 33' (10m)
Operating Voltage
12-30V DC/AC 60Hz, 100mA
Reaction time
10ms
Light Source
IR LED/Wavelength 740nm
LEDs - Red
Solid, No beam signal, triggered
LEDs - Green
Solid, Good beam signal, properly aligned
LEDs
Alternating flash- Poor beam signal
Alarm Output
SPDT relay output (NO/NC/COM)
Switching Capacity
500mA@30VAC/VDC
Tamper Switch
N.C., 500mA@30VAC/VDC
Operating Temperature
-4°~131° F (-20°~55° C)
Enclosure
IP55 Waterproof
