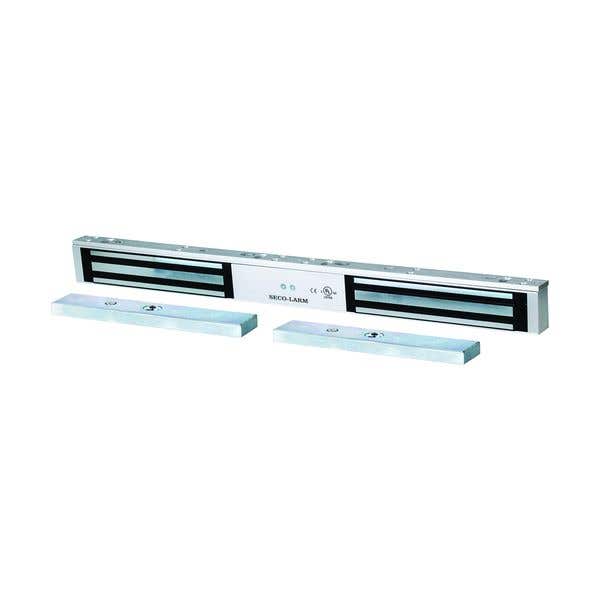

DOUBLE DOOR ELECTR. LOCKW/1200 LB HOLD 12 OR 24 VDC OPR
BRAND
Seco-Larm
MFG #
E-941DA-1K2Q
SES #
SCO E941DA1K2Q
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
- Anodized aluminum housing (US 28)
- 12 or 24 VDC (selectable)
- No residual magnetism
- Adjustable mounting bracket
- MOV surge protection
- Complete mounting hardware for typical installations
- "L" bracket and "Z" brackets available for easy mounting
- Detachable face plate
- UL and ULC listed
- CE listed
- RoHS compliant
Holding Force
1,200-lb (545kg) per door
Operating Voltage
12 or 24 VDC±10%
Current Draw
500mA@12VDC per door (1A total) 250mA@24VDC per door (500mA total)
Operating Temperature
14°~131° F (-10°~55° C)
Certification
UL, ULC, CE
Electromagnet Dimensions
21"x1-5/8"x2-5/8" (536x42x67 mm)
RoHS Compliance
Yes
Armature Dimensions
7-1/4"x5/8"x2-3/8" (185x16x61 mm)
Case Shipping Weight
43-lb (19.5kg)
Weight
21-lb (10kg)
Case Quantity
2 pcs
