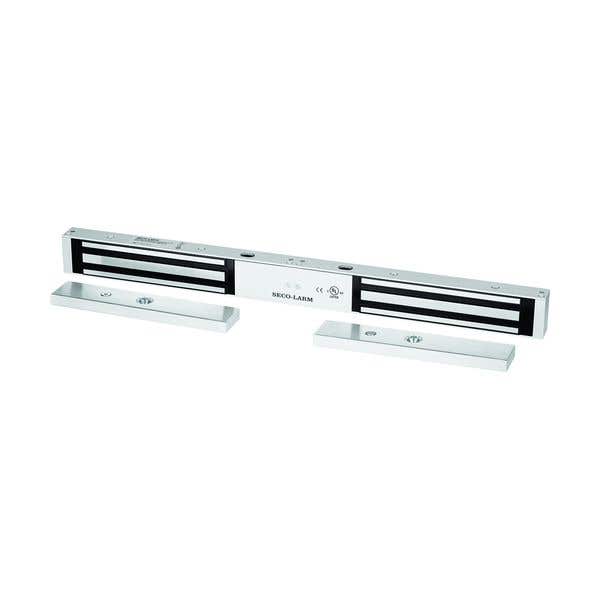

DOUBLE DOOR 600LBMAG LOCK 12/2 4VDC
BRAND
Seco-Larm
MFG #
E-941DA-600Q
SES #
SCO E941DA600Q
UPC
676544009818
Your Price
Usually ships between 3-7 business days
- Anodized aluminum housing (US 28)
- 12 or 24 VDC (selectable)
- No residual magnetism
- Adjustable mounting bracket
- MOV surge protection
- Complete mounting hardware for typical installations
- "L", "Z" and "U" brackets available for easy mounting
- Detachable face plate
- UL and ULC listed
- CE listed
- RoHS compliant
Holding Force
600-lb (272kg) per door
Operating Voltage
12 or 24 VDC ±10%
Current Draw
500mA@12VDC per door (1A total) 250mA@24VDC per door (500mA total)
Operating Temperature
14°~131° F (-10°~55° C)
Certification
UL, ULC, CE
Electromagnet Dimensions
19-11/16" x 1-5/8" x 1-1/16" (500x40x26 mm)
RoHS Compliance
Yes
Armature Dimensions
7-1/4"x1/2"x1-1/2" (185x12x38 mm)
Case Shipping Weight
46-lb (21kg)
Weight
9-lb (4kg)
Case Quantity
5 pcs
