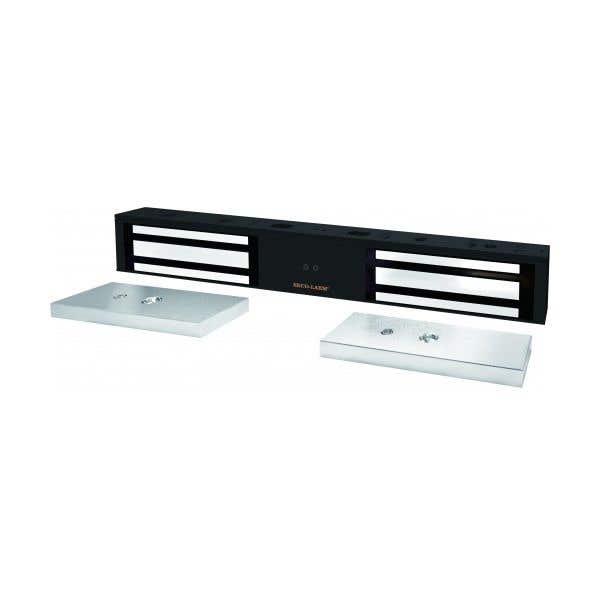

1200lb Double Door Maglock with Bond Sensor and LED - Black
BRAND
Seco-Larm
MFG #
E-941DB-1K2P
SES #
SCO E941DB1K2P
UPC
676544021957
Your Price
Usually ships between 3-7 business days
- UL 294 Listed (Access Control)
- Anodized aluminum housing (US 28)
- 12 or 24 VDC (selectable)
- No residual magnetism
- Adjustable mounting bracket
- MOV surge protection
- Complete mounting hardware for typical installations
- "L" bracket and "Z" brackets available for easy mounting
- Detachable face plate
- Built-in dual-color status LED and bond sensor to show locking status:
- Green: Door is closed and locked
- Red: Door not closed and/or locked
- Off: Door in use / no power
- Bond sensor output: 1A@30VDC
- Lifetime Limited Warranty - Contact SECO-LARM for details. Applies in U.S.A. & Canada only.
Holding Force
1,200-lb (545kg) per door
UL Listed
UL 294, ULC S104, UL 10B, UL 10C
Operating Voltage
12 or 24 VDC
Current Draw
500mA@12VDC per door (1A total) 270mA@24VDC per door (540mA total)
Operating Temperature
32º~120º F (0º~49º C)
Electromagnet Dimensions
21"x1-5/8"x2-5/8" (536x42x67 mm)
Armature Dimensions
7-1/4"x5/8"x2-3/8" (185x16x61 mm)
Weight
21-lb (10kg)
Bond Sensor
Yes
Status LED
Yes
