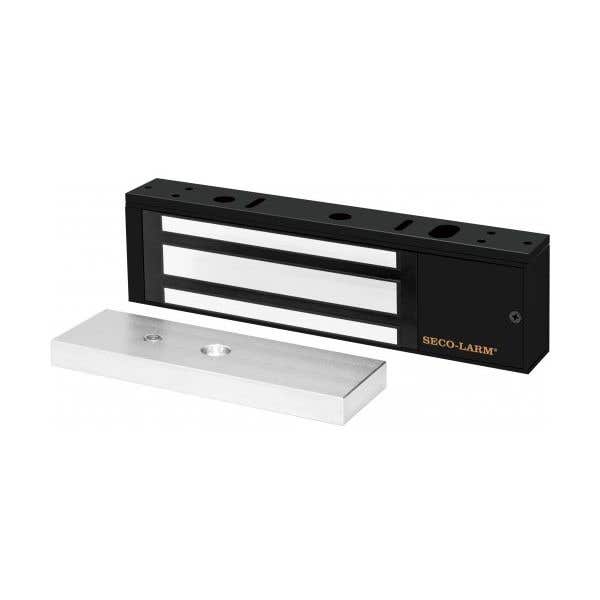

1200# MagLock-12 or 24VDC w/Bond Sensor & LED-Black
BRAND
Seco-Larm
MFG #
E-941SB-1K2PQ
SES #
SCO E941SB1K2PQ
UPC
676544021896
Your Price
Usually ships between 3-7 business days
- UL 294 Listed (Access Control)
- 1,200-lb Holding force
- Anodized aluminum housing (US 28)
- Selectable 12/24 VDC operation
- No residual magnetism
- MOV surge protection
- Adjustable mounting bracket
- Complete mounting hardware for typical installations
- “L” and “Z” brackets available for easy mounting
- Detachable faceplate
- Built-in dual-colored status LED and bond sensor to indicate locking status
- Bond sensor relay rated
- Lifetime Limited Warranty*
Holding Force
1,200-lb (545kg)
UL Listed
UL 294, ULC S104, UL 10B, UL10C
Operating Voltage
12/24 VDC
Current Draw
[email protected], [email protected]
Operating Temperature
32º~120º F (0º~49º C)
Electromagnet Dimensions
10-1/2"x1-5/8"x2-5/8" (268x42x67 mm)
Armature Dimensions
7-1/4"x5/8"x2-3/8" (185x16x61 mm)
Weight
11-lb (5kg)
Bond Sensor
Yes
Status LED
Yes
