90FT Twin In/Outdoor Photobeam SPDT-10-30VAC/DC
BRAND
Seco-Larm
SES #
SCO E960D90Q
MFG #
E-960-D90Q
UPC
676544000853
Your Price
Usually ships between 3-7 business days

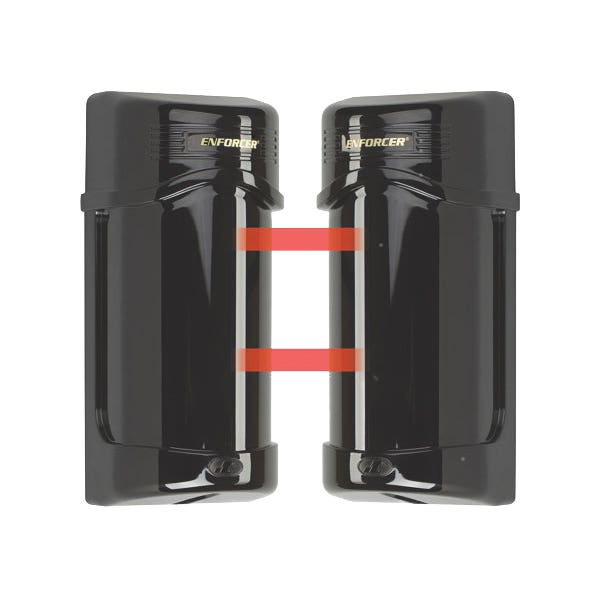

ENFORCER E-960-D90Q Long Range Photobeam Detectors are easy-to-install with laser beam alignment and provide extended range. Designed to provide reliable perimeter security both indoors and outdoors.
- Built-in laser beam alignment system speeds accurate, reliable positioning
- Twin infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
- Lensed optics reinforce beam strength & provide excellent immunity to false alarms due to rain, snow, mist, etc.
- Weatherproof, sunlight-filtering case for indoor & outdoor use
- Anti-frost system so that beam functions even in extreme conditions
- Automatic input power filtering with special noise rejection circuitry
- NC/NO alarm output
- N.C. tamper circuit included
- Non-polarized power inputs
- Quick, easy installation with built-in laser beam alignment system
- Interruption time adjustable for nearly all situations
Type
Twin Photobeam Detectors with Laser Beam Alignment
Current Draw
64mA max.
Sensing Range
Outdoor- 90' (30m), Indoor- 190' (60m)
Operating Voltage
10~30VAC/VDC (Non-polarized)
Interupt Speed
50msec~700msec (variable)
LEDs - Red
ON indicates transmitter and receiver not aligned or beam is broken
LEDs - Yellow
ON indicates weak receiver signal or beam is broken
LEDs - Green
ON indicates unit connected to power
Detection System
Simultaneous break of 2 beams
Alarm Output
NO/NC relay, 1A @ 120VAC, min. 1 sec.
Tamper Output
NC. switch, 1A@120VAC
Case material
PC Resin
Laser Wavelength
650nm
Operating Temperature
-13°~+131° F (-25°~+55° C)
Laser Output Power
5mW
Alignment Angle
Horizontal (+/-)90°, Vertical: (+/-)5°
Weight
2.5 lbs. (1.1kg)
