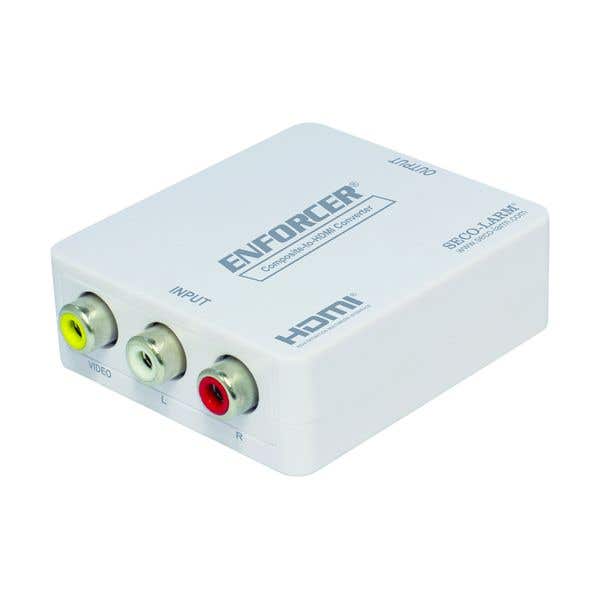

COMPOSITE TO HDMI CONVERTER
BRAND
Seco-Larm
MFG #
MVA-TH01Q
SES #
SCO MVA-TH01Q
UPC
676544017608
Your Price
Usually ships between 3-7 business days
The MVA-TH01Q Composite-to-HDMI Converter with Scaler allows the user to convert video from analog devices with composite (RCA) outputs on HDMI displays. Active operation allows the conversion of formats as large as 1920x1080. The MVA-TH01Q also has a L/R analog stereo input allowing the conversion of audio as well.
- Converts composite video and stereo audio to 720p or 1080p HDMI.
- Supports NTSC, PAL, and SECAM video inputs.
- Supports up to 1080p on HDMI output.
- Stereo audio input.
- Selectable between 720p and 1080p upscaling.
- Plug and play operation.
Supported Resolutions
720p/1080p
Video Input Signal
1Vp-p
DDC Input Signal
5V
Vertical Frequency
60Hz
Video Amplifier Bandwidth
1.65Gbps
Power Supply
5VDC (USB)
Operating Temperature
32°~104° F (0°~40° C)
Operating Humidity
20~90% RH (no condensation)
Dimensions
2-3/8" x 2-1/8" x 1-3/16" (60 x 54 x 20 mm)
Weight
1.4oz (40g)
Video Formats Supported
NTSC / PAL / SECAM
Audio Formats Supported
Stereo
Video Input Connector
RCA Female
Video Output Connector
HDMI Type-A 19-pin female
