4CH BRICK POWER SUPPLY 12VDC 5 AMP
BRAND
Seco-Larm
MFG #
PA-U0405-NULQ
SES #
SCO PAU0405NULQ
UPC
676544016205
Your Price
Usually ships between 3-7 business days

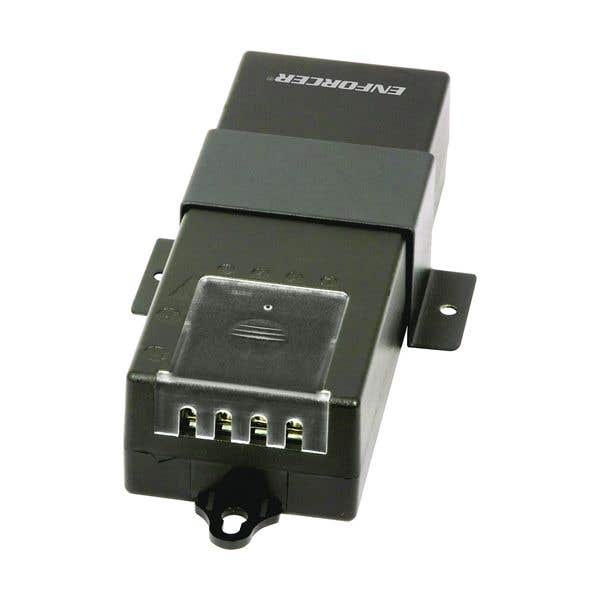

The PA-U0405-NULQ is a 4-channel 5-Amp power supply. While normally used in CCTV installations, it is suitable for a wide variety of both CCTV and access control applications. It features adjustable output voltage and built-in 6.8-Amp overcurrent protection.\
- 4-Channel, 5-Amp power distribution
- Can be mounted with the bracket for easy access and reduced power cord clutter
- Universal input voltage: 100~240 VAC
- Adjustable output voltage: 12~13.8 VDC
- Built-in 6.8-Amp overcurrent protection
- High voltage and overcurrent protection
- LED Power indicator
Input Voltage
100~240VAC
Max. Output power
60W
Output Voltage
12~13.8 VDC, adjustable
Number of Outputs
4
Total Supply Current
5 Amp
Input fuse
3.15A@250VAC
Overcurrent Protection
12VDC / 6.8A
Dimensions
5-7/8" x 2-3/16" x 1-5/16" (150 x 55 x 33 mm)
Weight
13.4-oz (380g)
Operating Temperature
14°~113° F (-10°~45° C)
