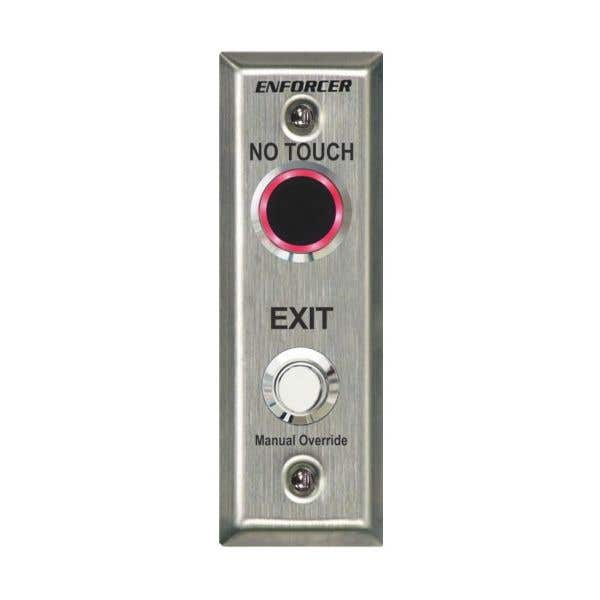

OUTDOOR NO TOUCH SLIM LINE RTE BUTTON W/OVERRIDE SWITCH
BRAND
Seco-Larm
SES #
SCO SD9163KSVQ
MFG #
SD-9163-KSVQ
UPC
676544011828
Your Price
Usually ships between 3-7 business days
ENFORCER "No Touch" Request-To-Exit Plates use IR technology to request egress from a protected area or to activate a device with the simple wave of a hand. Since they require no touch, these plates are ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
- Weather-resistant (IP65) for outdoor use
- Clean and simple no-touch operation reduces the risk of cross-contamination
- Adjustable sensor range up to 7" (18cm)
- Stainless-steel plate, available in slimline or single-gang
- 1A relay, adjustable trigger duration 0.5~30 seconds
- Selectable LED colors (turns from red to green or green to red) to show if the sensor is activated
- Manual override button functions without electricity in case of power failure
Type
"No Touch" Request-to-Exit Plates with Adjustable Delay Timer, for Outdoor Use
Current Draw
Standby- 16mA@12VDC / 25mA@24VDC, Triggered- 25mA@12VDC / 32mA@24VDC
Sensing Range
2"~7" (5~18cm)
Operating Voltage
12~24 VDC
Reaction time
10mS
LEDs - Red
Standby (Colors are reversible.)
LEDs - Green
Triggered (Colors are reversible.)
Relay Type
Form C dry contact 1A@30VDC
Output Time
0.5~30 s, toggle
Switching Capacity
1A@30VDC
Operating Temperature
-4°~131° F (-20°~55° C)
Dimensions
4-1/2" x 1-1/2" x 1-1/2" (115 x 39 x 39 mm)
Weight
77g
Enclosure
IP65
