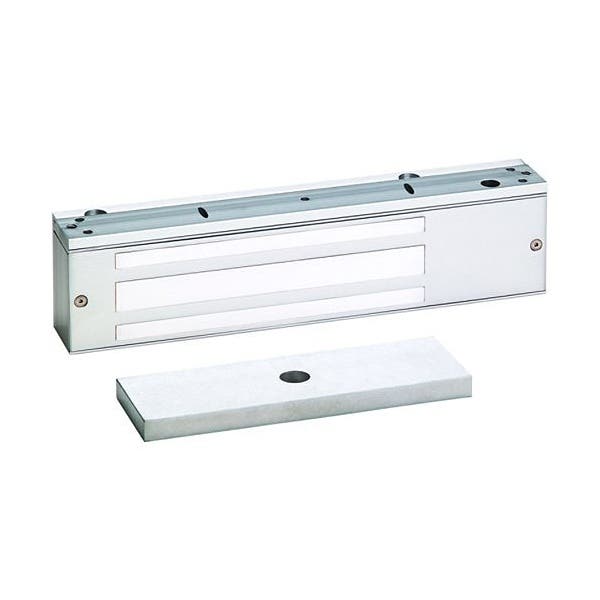

SDC 1571V EMLock 1570 Series Single Electromagnetic Lock - 1200 lb - Dull Aluminum

BRAND
SDC (Security Door Controls)
MFG #
1571V
SES #
SDC 1571V
UPC
712905211763

Your Price

Usually ships between 3-7 business days

SDC’s patented EMLock® design represents the pinnacle of magnetic lock evolution. The modular EMLock® assembly makes them easy to stock, install, upgrade and maintain. SDC 1500 series EMLocks® include a lifetime warranty and are available in 650lbs, 1200lbs, and 1650lbs holding force. Compatible with any access control system, all EmLocks® are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxyless design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. EMLocks® are UL Listed and ANSI Grade 1 compliant.

  • Modular Design
  • Modular Upgrade Kits
  • Quick Mount Assembly
  • Uniform Design and Installation
  • Identical Housing, Template and Accessories
  • Field Upgradeable without removing from the frame
Voltage
12/24VDC Voltage Sensing Input
Single
125mA @ 24VDC; 250mA @ 12VDC; 11"L x 2-3/4"H x 1-9/16"D
Double
250mA @ 24VDC; 500mA @ 12VDC; 22" L x 2-3/4" H x 1-9/16" D
