1.5 AMP R3EG POWER SUPPLY

BRAND
SDC (Security Door Controls)
SES #
SDC 631RF
MFG #
631RF
UPC
No UPC Set

Your Price

Usually ships between 3-7 business days

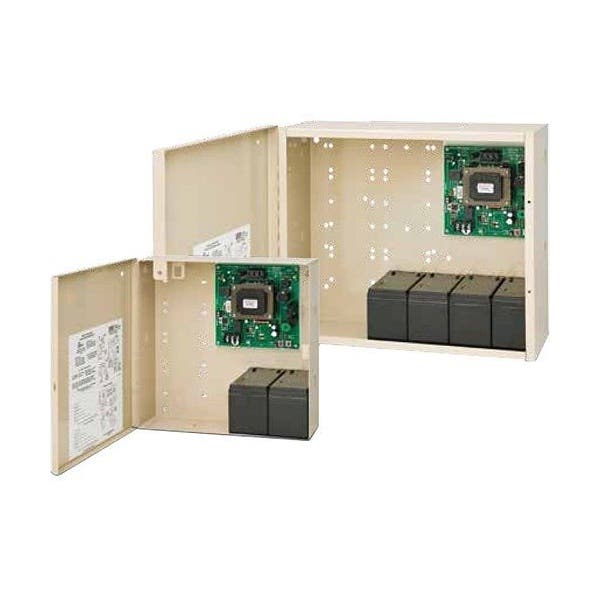

The SDC 631RF Power Supplies have been developed specifically to support electric locks and access controls. The high performance, heavy-duty circuitry is ideal for inductive loads and multi-door applications. The modular design is built around several different application control modules to meet your specific needs for virtually any electric lock system. SDC power supplies are designed to provide a well organized installation for individual or multidoor systems that may include locking devices, access controls, station controls and consoles for remote control, annunciation and fire/life safety system interfaces.
  • 631RF Power Supply, plus 12" W x 12" H x 4" D Cabinet
  • Field selectable 12 or 24VDC, regulated and filtered
  • Auto resetting output circuit protection
  • Isolated 13.5/27VDC battery charger
  • Low battery disconnect
  • Emergency release input
  • Input, output and battery status LED's
  • Choice of output and door control modules
Input
115VAC @ 800 mA, 50/60 Hz Fused
Secondary Output
Selectable 12VDC or 24VDC @ 1.5 Amp, Poly Fuse Protected, Class 2
Battery Charger Output
250mA @ 13.5 or 27VDC, PTC Protected
631RF Cabinet
12" W x 12" H x 4"D, Steel 20 Ga.
