IN/OUTDOOR KEYPAD W/PROX + WIEGAND OUT-12/24AC/DC-500CODE
BRAND
SDC (Security Door Controls)
SES #
SDC 920PW
MFG #
920PW
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days

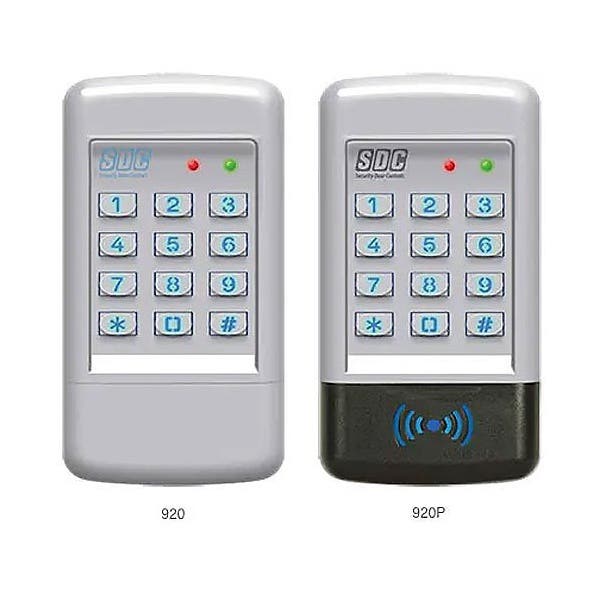

The SDC 920 EntryCheck series consists of stand alone digital keypads designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Optional Prox Readers are available for selective models. The 920PW is designed to interface with most access control systems and provides a standard 26-bit Wiegand output.
- Digital Keypad, 500 Users, 12/24 VAC/DC
- HID-Compatible Proximity Reader (920P and 920PW only)
- Programmable Site Code (920PW)
- Proximity Reader 3 User Modes:
- PIN or Card
- Card Only
- Card and PIN
- (HID-Compatible: 125kHz-RFID)
- Weather Resistant
- Heavy Cast Vandal Resistant Housing
- Heavy Cast Metal Blue Backlit Keys
- Keypad programmable
- 500 Users, 4-6 digit PIN codes
- 4 outputs, 2 relay and 2 solid state outputs timed or latching (on/off)
- Assign entry PIN's to relays 1 and/or 2
- LED Status: Access, lockout
- Tactile keys with loudness selectable audible volume for key depression or output activation
- Timed anti-passback, anti-tailgate
- Keypad tamper lockout
- Request-to-Exit/Enter input
- Choice of door sense/relay inhibit input functions
- Forced entry
- Door ajar
- Inhibit relay 1 or 2
- Auto relock when door closes
- Choice of 2 solid states outputs functions:
- Alarm shunt
- Forced entry
- Door ajar
- Tamper lockout
- Keypad active
Keypad Housing
Powder Coat Painted Cast Metal
Voltage
5-16VDC
Current
30mA Typical, 60mA Max.
Reader Output
26-bit Wiegand
Reader Frequency
125kHz
Keypad Output
26-bit Wiegand or 4-bit Word
Wiring
6" Pigtail
Temperature
-4°F to +140°F (-20°C to +60°C)
Humidity
5% to 95% Non-Condensing
Finish
Powder Coat Painted Cast Metal
Weight
2.0 lbs
