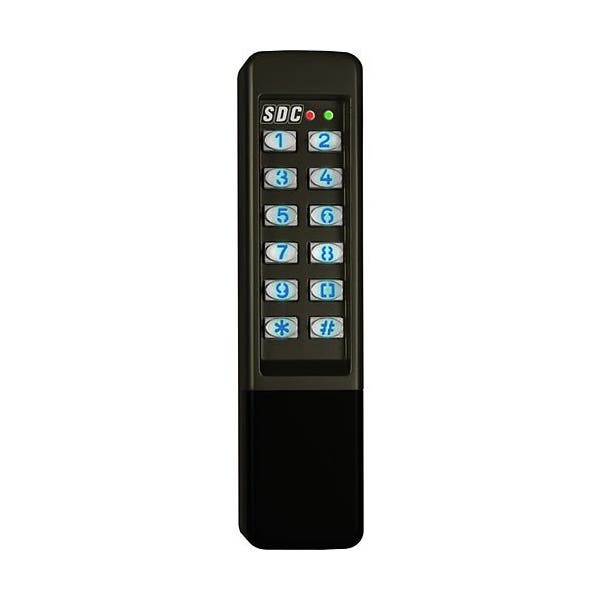

NARROW IN/OUTDOOR KEYPAD HEAVY-DUTY-12/24V-500 CODE
BRAND
SDC (Security Door Controls)
SES #
SDC 923
MFG #
923
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
The SDC 923 EntryCheck Narrow series consists of stand alone digital keypads designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Optional Prox Readers are available for selective models.
- Weather Resistant
- Heavy Cast Vandal Resistant Housing
- Heavy Cast Metal Blue Backlit Keys
- Keypad programmable
- 500 Users, 4-6 digit PIN codes
- 4 outputs, 2 relay and 2 solid state outputs timed or latching (on/off)
- Assign entry PIN's to relays 1 and/or 2
- LED Status: Access, lockout
- Tactile keys with loudness selectable audible volume for key depression or output activation
- Timed anti-passback, anti-tailgate
- Keypad tamper lockout
- Request-to-Exit/Enter input
- Choice of door sense/relay inhibit input functions
- Forced entry
- Door ajar
- Inhibit relay 1 or 2
- Auto relock when door closes
- Choice of 2 solid states outputs functions:
- Alarm shunt
- Forced entry
- Door ajar
- Tamper lockout
- Keypad active
Voltage
12/24 VAC/DC
Current
30mA Typical, 150mA Maximum
Outputs (923/923P)
Relay 1 - SPDT 5 Amps @ 30VDC / Relay 2 - SPDT 2 Amps @ 30VDC / Switch to Common Outputs 3 & 4 - 100mA @ 30VDC
Temperature
-4°F to +140°F (-20°C to +60°C)
Humidity
5% to 95% Non-Condensing
Finish
Powder Coat Painted Cast Metal
Mount
Surface Mount
Housing
1-3/4"W x 7-5/16"H x 1-3/8"D (1.5" Wall Projection)
Weight
1.65 lbs
