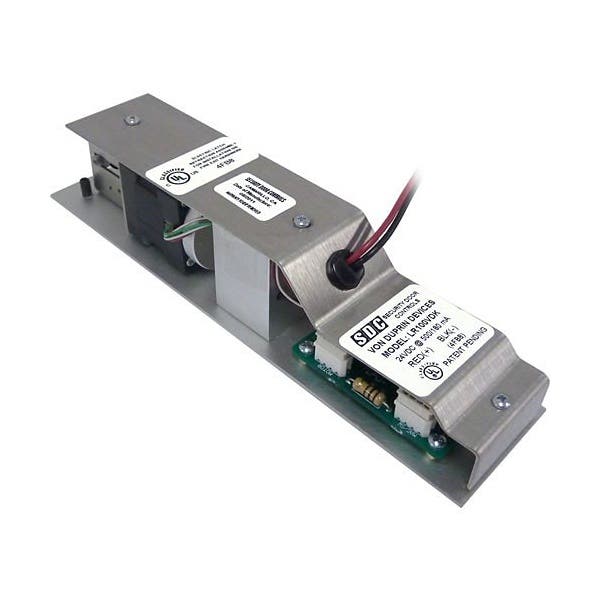

ELECTRIC LATCH RETRACTION KIT VON DUPRIN 33/35&98/99
BRAND
SDC (Security Door Controls)
SES #
SDC LR100VDK
MFG #
LR100VDK
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
The SDC LR100 Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door. The latch retraction mechanism may be activated by an access control, remote control device or building automation system. The exit device always provides uninhibited egress.
- Opening for 36"- 48"
- Models
- Rim Mount 98/99 33A / 35A
- Surface Vertical Rod 9827/9927 3327A / 3527A
- Concealed Vertical Rod 9847/9947 3347A / 3547A
- Mortise 9875/9975
- Three Point latching 9857/9957
- 700 mA Inrush**, 200 mA Continuous @ 24VDC
- For access control and sustained dogging applications
- Simultaneous latch retraction and dogging (pushpad depressed) for most exit devices*
- Pushpad is depressed* electrically for quieter push / pull operation
- Automatic re-trigger if device does not pull on first try
- Eliminates need for costly replacement of existing exit device
- Significantly less labor and costs compared to competitive retrofit kits
- Low current enables longer wire runs with smaller gauge wire
- No door sequencers required for pairs of manual doors
- Installs in Von Duprin non-free rated panic device without removing from the door
