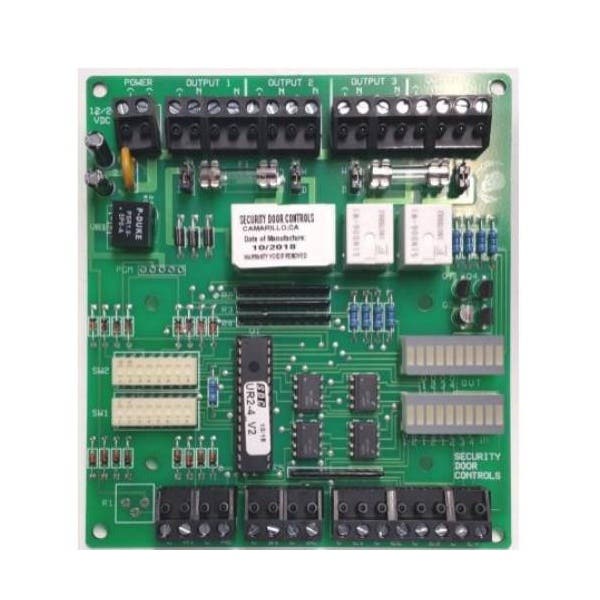

SDC UR2-4 UR Series Universal Microprocessor-Based Door Controller - Relays
BRAND
SDC (Security Door Controls)
MFG #
UR2-4
SES #
SDC UR2-4
UPC
712905239064
Your Price
Usually ships between 3-7 business days
Use the same controller for virtually all multi-door applications. Centralized wiring for all locks, access controls, monitoring contacts and peripheral equipment. On board logic eliminates the need for standalone relays. Reduced wiring, easy troubleshooting.
UR2-4 SDC Programmable Controller, 2 Stations, 6 Selectable Output Modes, (2) Fused SPDT, (2) SPDT Outputs, 2 Inputs per station, and 4 Aux Inputs
- Use the same controller for virtually all multi-door applications
- CentralizedWiring for all locks, access controls, monitoring contacts and peripheral equipment
- On board logic reduces need for co mmunicating door and lock contacts and standalone relays
- Reduced wiring, easy troubleshooting
Input Voltage
12 or 24VDC +/- 10%
Input Current
130mA Max.
Relay Inputs
4-SPST, Dry, Optically Isolated (Relay) / 4-SPST, NO Dry, Optically Isolated (Auxiliary)
Outputs
2 fused SPDT relays, 7 Amps @ 30VDC / 2 non-fused SPDT relays, 7 Amps @ 30VDC
Dimensions
4.5" W x 5" H x 7/8" D UR2-4
