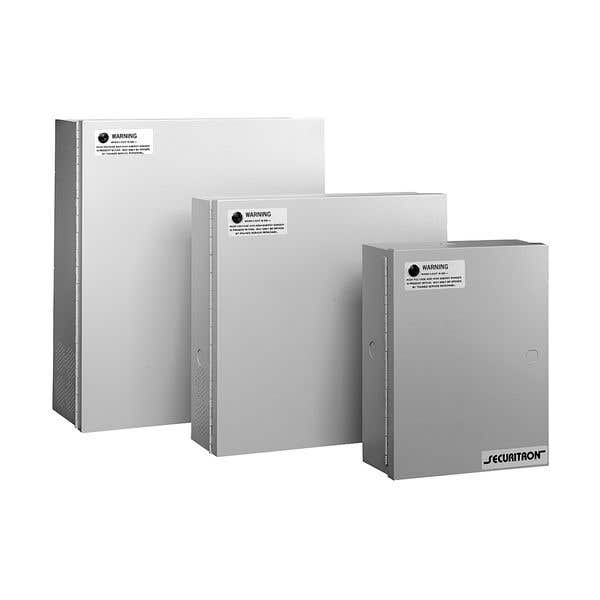

POWER SUPPLY 24VDC-1AMP
BRAND
Securitron
MFG #
BPS-24-1
SES #
SEC BPS241
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
Recommended where an interface with a fire alarm system or battery backup is needed. The BPS linear power supply delivers more current than PSPs, and all BPS models are UL Class 2 listed, allowing for wire runs without the use of conduit from power supply to door.
- 1, 4 or 8 polyswitch (PTC) 2A circuit breakers based on model
- LEDs monitor zone status (voltage, no voltage)
- Slide switches connect or disconnect load from power (excludes 1 Amp)
- Sealed lead acid-gel battery charging capability (battery not included)
- Rugged steel enclosure
- Provided with terminals for fire alarm relay connection, allowing release of all devices upon fire alarm activation
- Clean linear power for flawless operation with all sensitive active electronic components
- BPS UL Listed
- MagnaCare lifetime replacement, no fault warranty
- Input Voltage: 120VAC BPS
- Operating Temperature: +32 to +105F [0 to +40C]
- Shipping Weight:
- BPS-12-1, BPS-24-1: 9 lbs.
- BPS-12-3, BPS-24-2: 15 lbs.
- BPS-12-45 and BPS-24-3: 18 lbs.
- BPS-12-6 and BPS-24-4: 24 lbs.
- BPS-12-9 and BPS-24-6: 28 lbs.
- BPS-12-15 and BPS-24-10: 33 lbs.
- Certifications and Listings
- UL FWAX2.SA6635
- cUL FWAX8.SA6635
- UL/cUL ALVY.BP7041 /UEHX7.BP7041
- UL Certificate of Compliance (CoC)
- CSFM 3774-0923:0102
- CSFM 3774-0923:0103
- ANSI/UL 294 Listed
- CSA-C22.2 No.205 Listed
- MEA - City of New York Approved
