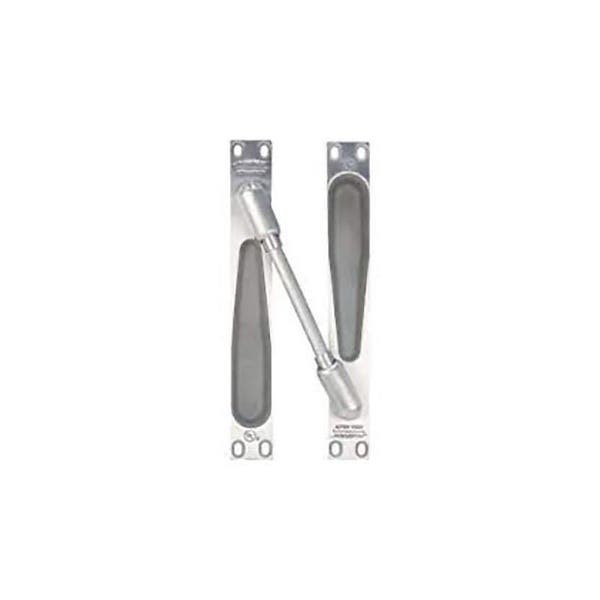

Concealed Electrical Power Transfer - US32D / 10 Wire
BRAND
Securitron
SES #
SEC CEPT10
MFG #
CEPT-10
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
- Mortises into the edges of the door and frame
- Tamper resistant. No exposed openings prevents foreign objects from reaching the wires or jamming the device
- All metal construction including backboxes - no plastic
- 10 wire configuration includes 2-18 gauge wires for higher current devices
- Available with CAT-5E and ElectroLynx compatible connectors
- Four architectural finishes: US32, US04, US10 and US10B
- Installs above 2nd hinge
- 7/8" knockouts on back boxes accommodate EMF-type fittings
- Tested to 1,000,000 cycles
- Will only function with butt hinges - up to 6"
- Will not work on center-hung or balanced doors
- Will work with Continuous Hinges - please check with Continuous Hinge Manufacturer as to their cutout availability and charge for this cutout
- Certifications and Listings
- ANSI/UL 10C Listed, 3 hour rated
- ULC-S318 Listed, 3 hour rated
- UL Certificate of Compliance (CoC)
- ANSI/SDI-BHMA A250.13(+/- 150 psi) Windstorm Listed
- Florida Building Code Approved
Hinge
Door Angle Range
