INDOOR KEYPAD SYSTEM SINGLE GANG
BRAND
Securitron
SES #
SEC DK16
MFG #
DK-16
UPC
784607025863
Your Price
Usually ships between 3-7 business days

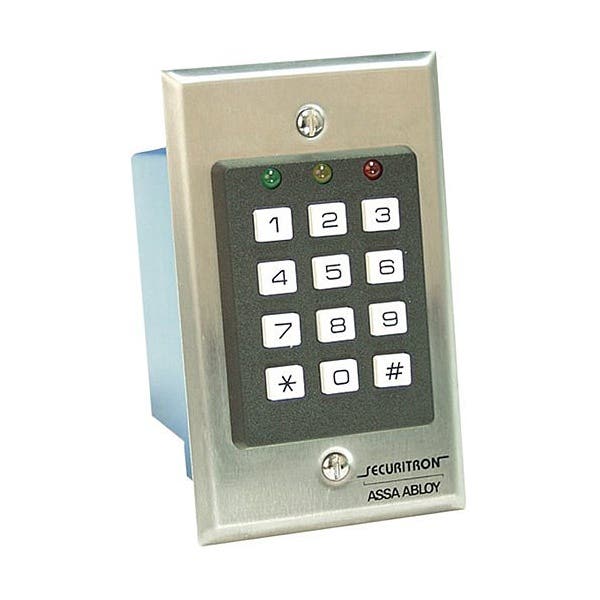

The DK-16 digital keypad system provides medium/high security control of electric locks in a one- or two-door application where both doors have the same control needs. The tamper-resistant keypad provides true 10-key operation for use and programming. Encased in a separate enclosure for secure installation in a protected area, the controller offers REX input and relay output for lock control, alarm shunt or other interfaces.
- 12-key keypad with engraved and paint filled numbers
- Stainless steel plate
- Red, green and yellow LEDs for status and programming feedback
- Audible keystroke echo
- True 10-key operation (keys are not paired)
- 59 users with multiple entry codes
- User code and hard code disable feature
- Passage Mode and Lockout Mode
- Request to exit (REX) input
- 16 ft. [4.8m], 12 conductor, 22 gauge keypad cable
- 3 LEDs and a bell button
- US32D/630 Satin Stainless Steel finish
- MagnaCare lifetime replacement, no fault, no questions asked warranty Accessories
- WCC Weather-resistant cover
- WBB Weather-resistant back box
- Keypad available as system or separately
- Dimensions
- Keypad: 2-3/4"W x 4-1/2"H x 5/32"D
- Enclosure: 6"W x 8"H x 3"D
- Electrical
- 12 VAC/VDC: 7 m at rest; 160 m active
- 24 VAC/VDC: 20 m at rest; 190 m active
- Operating Temperature
- CPU: +32 to +158F [0 to +70C]
- Keypad: +32 to +110F [0 to +43C] Indoor use
- Shipping Weight
- Keypad and Controller: 2.8lbs [1.25kg]
