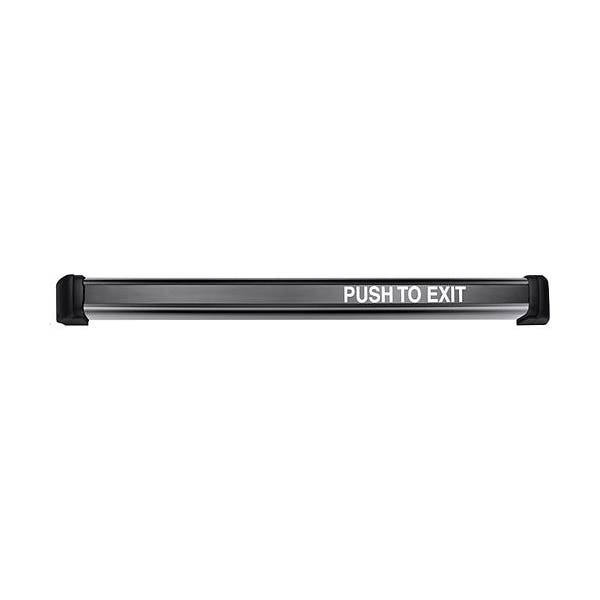

36" DUAL SENSE BAR BLACK ANNODIZED
BRAND
Securitron
SES #
SEC DSBBK
MFG #
DSB-BK
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days
The Dual Sense Bar (DSB) is for use on magnetically locked, non-fire-rated doors. Specifically designed to address the most current building and life safety codes, the DSB features two independent switch circuits to release the lock. Simply touching the bar or engaging its mechanical movement will allow free egress. For indoor use only, the DSB can be installed on metal, aluminum or wood doors of all types. Meets "no special tools or knowledge" requirements.
- The most dependable exit device available for magnetically locked openings
- Less than 1/8" mechanical movement and ultra-reliable touch sense technology working together in a single exit bar
- Touch sensing and redundant movement-activated switches complies with current fire and life safety egress codes
- Uses same mounting pattern as the TSB
- Circuit board is immune to electrostatic discharge - switching power supplies, proximity and garment readers and neon signs
- Bounce resistant to false triggering from outside impact
- Three standard lengths: 36", 42" or 48"
- All metal construction will stand up to rugged interior environments
- Like the TSB-3, the DSB allows field cutting to fit non-standard door widths
- Optional illuminated "Push To Exit" via internal fiber optic strip
- 16 ft. [4.8m] 22AWG 6 conductor cable and armored door cord included
- Available ElectroLynx ready
- Operates on either 12 or 24VDC
- Tested to 27,000 volts electrostatic discharge
- UL Listed
- MagnaCare lifetime replacement, no fault warranty
- Current Draw:
- Dual Sense Bar Only - 24mA
- Dual Sense Bar with Illumination - 44mA
- Voltage: 12 or 24VDC
- Operating Temperature: +32 to +120F [0 to +49C]
- Shipping Weight: 6 to 8 lbs. depending on length
