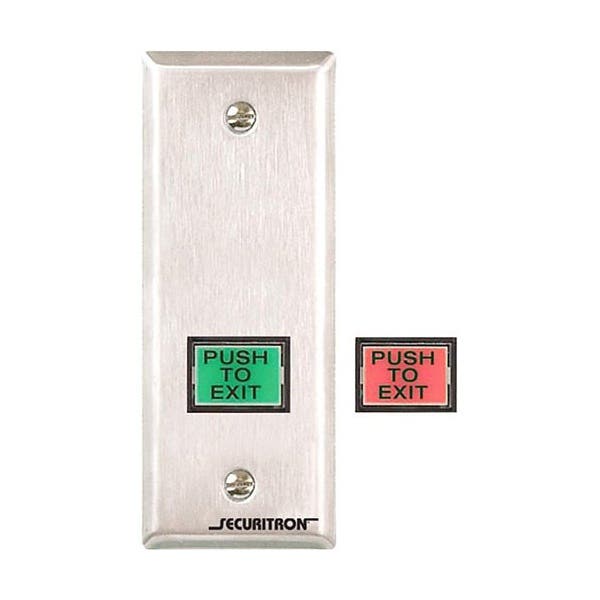

Securitron EEB3N Emergency Exit Button with 30 second Timer - Narrow Stile - Green/Red
BRAND
Securitron
MFG #
EEB3N
SES #
SEC EEB3N
UPC
784607028086
Your Price
Usually ships between 3-7 business days
The red and white wires from the EEB2/3N must receive voltage from the same power supply.
Weather Option:WCC and WBB available for all Single Gang Push Buttons, Keyswitches and Keypads.
Safety Notice:Securitron's UL294 certification indicates that when the EEB is used with the XMS Motion Sensor, it meets the NFPA Life Safety Code 101 requirements for exit of access-controlled egress doors.
- Emergency Exit Buttons offer additional safety, as required by code, for possible malfunction of motion exit sensor
- Mounted next to door
- Momentarily pressing the button releases door for 30 seconds
- Retriggerable
- Single Gang or Narrow Stile
- SPDT 3 Amp wet N/C contacts
- Operates on 12 or 24 VDC (must be same voltage as the installed lock)
- For indoor use only
- EEB2 includes switchable green, red and blue ADA lenses
- EEB3N includes switchable green and red lenses
