600# MAG LOCK 12/24VDC EASY MOUNTING OPTIONS
BRAND
Securitron
SES #
SEC M38
MFG #
M38
UPC
784607030959
Your Price
Usually ships between 3-7 business days

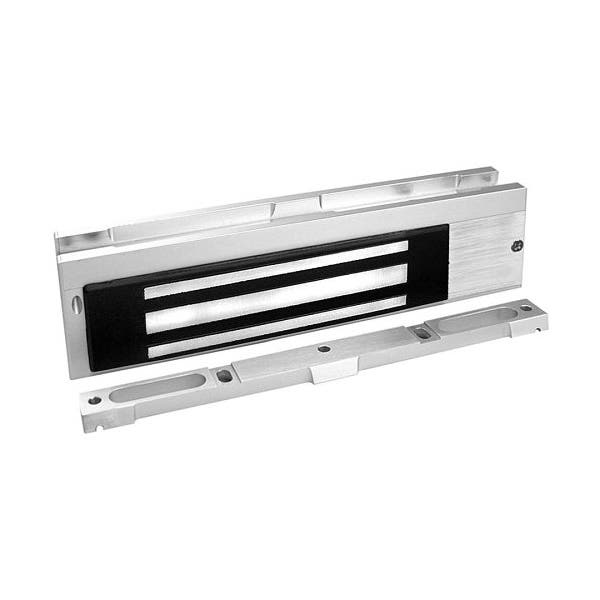

600 lbs. holding force Magnalock with automatic dual voltage. This model offers a built-in wire access chamber and bracket mount design for a unique and simplified method of installation. Recommended for applications where physical assault on the door is not expected, like access controlled interior rooms and secure areas within buildings.
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with mounting bracket using minimal tools
- Internal wire access chamber
- Mounted using steel machine screws into blind finishing nuts
- Brushed aluminum finish
- All ferrous metal surfaces plated to MIL specification
- Automatic dual voltage - no field adjustment required
- Dress Covers available
- Lock options include Senstat, door position switch, LED indicator and anti-tamper switch
- UL Listed
- MagnaCare lifetime replacement, no fault warranty
- Holding Force: 600 lbs. [272 kg]
- Current Draw and Voltage: 350mA at 12VDC; 170mA at 24VDC
- Operating Temperature: +32 to +110F [0 to +43C]
- Shipping Weight: 8 lbs.
- Certifications and Listings
- UL/cUL GWXT.R13976 /GWXT7.R13976
- UL/cUL FWAX.SA6635 /FWAX7.SA6635
- UL/cUL FWAX8.SA6635
- UL/cUL ALVY.BP7041 /UEHX7.BP7041
- UL 10C Listed
- UL 1034 Burglary-Resistant Listed
- UL Certificate of Compliance (CoC)
- CSFM 3774-0923:0101
- CSFM 3774-0923:0102
- CSFM 3774-0923:0103
- CAN4-S104, CAN/ULC Listed
- ANSI/BHMA A156.23, Grade 1;E18501-500, E18531-500
- SFM- California State FireMarshal Approved
