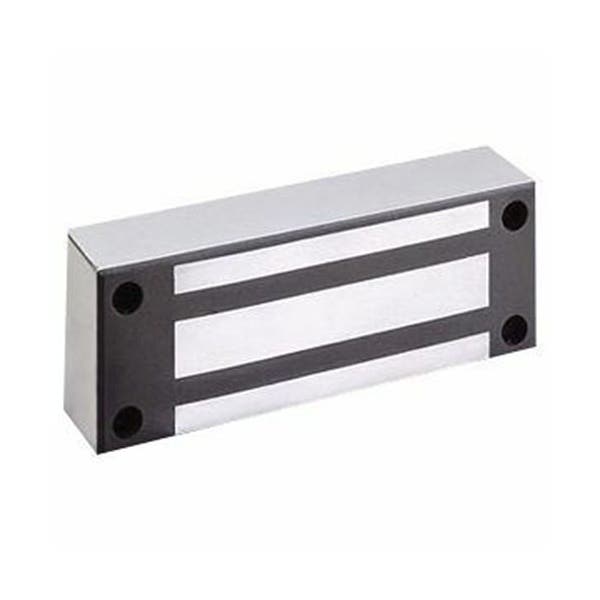

1200 MAG LOCK W/FACE DRILL AND CONDUIT FITTINGS
BRAND
Securitron
SES #
SEC M62FG
MFG #
M62FG
UPC
784607028444
Your Price
Usually ships between 3-7 business days
1200 lbs. holding force Magnalock with automatic dual voltage. Recommended for exterior and perimeter doors through which criminals could gain entrance to cause substantial economic loss.
- Patented instant release circuit - no residual magnetism
- Fully sealed electronics - tamper proof and weatherproof
- Surface mounts easily with minimal tools
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening
- Dress Covers available
- Ten feet [3.05m] of jacketed, stranded conductor
- Automatic dual voltage - no field adjustment required
- Lock options include BondSTAT magnetic bond sensor, integrated door position switch, conduit fitting, double and face mount models
- Universal threaded conduit fitting is 1/2" female - 3/4" male
- Split Strike Plates and Offset Strike Plates available
- UL Listed
- MagnaCare lifetime replacement, no fault warranty
- Holding Force: 1200 lbs. [544 kg]
- Current Draw and Voltage: 250mA at 12VDC; 150mA at 24VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
- Shipping Weight: 11 lbs.
- Certifications and Listings
- UL/cUL GWXT.R13976 /GWXT7.R13976
- UL/cUL FWAX7.SA6635
- UL/cUL FWAX2.SA6635 /FWAX8.SA6635
- UL/cUL ALVY.BP7041 /UEHX7.BP7041
- UL 10C Listed
- UL Certificate of Compliance (CoC)
- CSFM 3774-0923:0101
- CSFM 3774-0923:0102
- CSFM 3774-0923:0103
- CAN4-S104, CAN/ULC-S533 Listed
- CSA-C22.2 No.205 Listed
- ANSI/UL 294 Listed
- ANSI/BHMA A156.23, Grade 1;E08501-1000
- CSFM- California State FireMarshal Approved
- MEA - City of New York Approved
- CE:EN 50081-1(92), EN 61000-6-2(99)Approved
