1200#MAG LOCK 12/24VDC EASY MOUNTING OPTIONS
BRAND
Securitron
SES #
SEC M68
MFG #
M68
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days

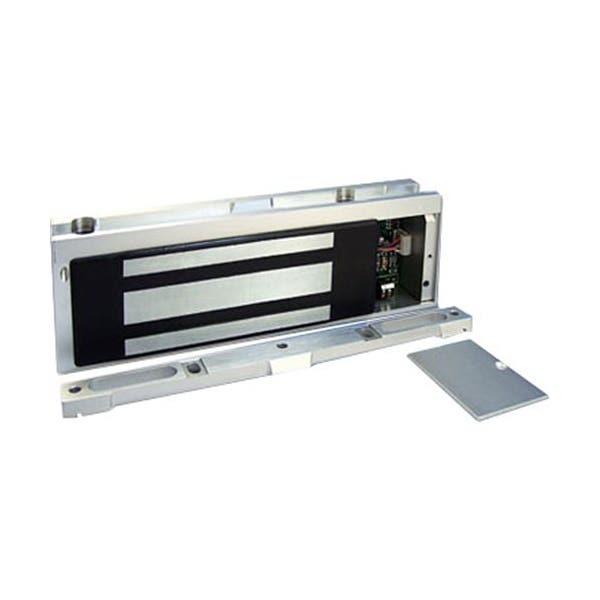

1200 lbs. holding force Magnalock with automatic dual voltage. This model offers a built-in wire access chamber and bracket mount design for a unique method of installation. Recommended for interior and perimeter doors through which criminals could gain entrance to cause substantial economic loss.
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with mounting bracket using minimal tools
- Internal wire access chamber
- Mounted using steel machine screws into blind finishing nuts
- Brushed aluminum finish
- All ferrous metal surfaces plated to MIL specification
- Automatic dual voltage - no field adjustment required
- Dress Covers available
- Lock options include door position switch, LED indicator and anti-tamper switch
- UL Listed
- MagnaCare lifetime replacement, no fault warranty
- Holding Force: 1200 lbs. [544 kg]
- Current Draw and Voltage: 250mA at 12VDC; 125mA at 24VDC
- Operating Temperature: +32 to +110F [0 to +43C]
- Shipping Weight: 13 lbs.
- NOTE: An Offset Strike may be required for proper installation of the M68 in aluminum frame door applications.
- Certifications and Listings
- UL/cUL GWXT.R13976 /GWXT7.R13976
- UL/cUL FWAX7.SA6635
- UL/cUL FWAX2.SA6635 /FWAX8.SA6635
- UL/cUL ALVY.BP7041 /UEHX7.BP7041
- UL 10C Listed
- UL Certificate of Compliance (CoC)
- CAN4-S104, CAN/ULC-S533 Listed
- CSFM 3774-0923:0101
- CSFM 3774-0923:0102
- CSFM 3774-0923:0103
- CSA-C22.2 No.205 Listed
- CSFM- California State FireMarshal Approved
- ANSI/UL 294 Listed
- ANSI/BHMA A156.23, Grade 1;E18501-1000
- CE:EN 50081-1(92), EN 61000-6-2(99)Approved
