1800# MAGLOCK W/BOND STAT
BRAND
Securitron
SES #
SEC M82B
MFG #
M82B
UPC
784607035510
Your Price
Usually ships between 3-7 business days

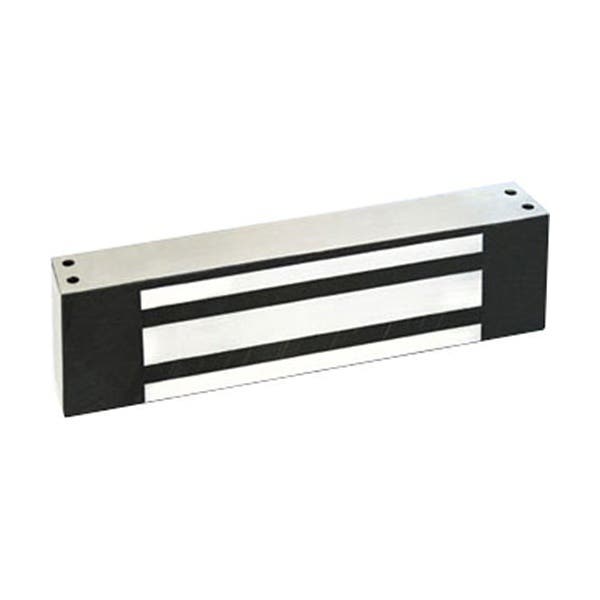

1800 lbs. holding force Magnalock with automatic dual voltage and magnetic bond sensing function standard. Preferred by prisons and detention facilities, and also functions best on large, high security gates.
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with minimal tools
- Fully sealed electronics - tamper proof and weatherproof
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening type include mounting brackets, housings and dress covers
- Ten feet [3.05m] of jacketed, stranded conductor
- Automatic dual voltage - no field adjustment required
- BondSTAT magnetic bond sensor standard
- Integrated door position switch, conduit and face mount models available
- Universal threaded conduit fitting is 1/2" female - 3/4" male
- UL Listed
- MagnaCare lifetime replacement, no fault warranty
- Holding Force: 1800 lbs. [816 kg]
- Current Draw and Voltage: 350mA at 12VDC; 200mA at 24VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
- Shipping Weight: 16 lbs.
- Certifications and Listings
- UL 10C Listed
- UL/cUL GWXT.R13976 /GWXT7.R13976
- UL/cUL FWAX7.SA6635
- UL/cUL FWAX2.SA6635 /FWAX8.SA6635
- UL/cUL ALVY.BP7041 /UEHX7.BP7041
- UL Certificate of Compliance (CoC)
- CSFM 3774-0923:0101
- CSFM 3774-0923:0102
- CSFM 3774-0923:0103
- CAN4-S104, CAN/ULC-S533 Listed
- ANSI/UL 294 Listed
- ANSI/BHMA A156.23, Grade 1;E08501-1500
- CSFM- California State Fire Marshal Approved
- CE:EN 50081-1(92), EN 61000-6-2(99)Approved
