4000# ELECTRO-MECHANICAL MAGLOCK
BRAND
Securitron
SES #
SEC MM15
MFG #
MM15
UPC
784607034926
Your Price
Usually ships between 3-7 business days

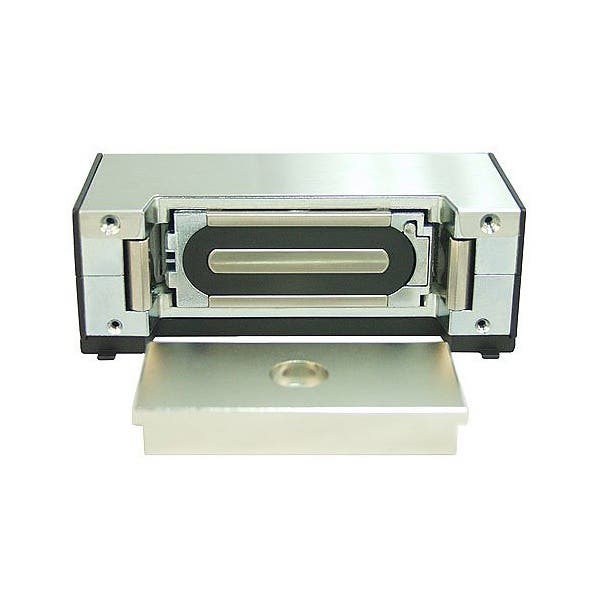

The Securitron MM15 MEMLOCK is a 4000 lbs. holding force, dual voltage, dual current Magnalock for interior or perimeter doors where ultra-high security and compact size are required. MM15 is a hybrid design with two spring loaded, hardened steel jaws. In the event of a forced entry attempt, the mandibles rotate inward, clamping down and capturing the edges of the armature.
- 4000 lbs. holding force provides an unmatched level of security
- Dual voltage (12/24) and dual current (AC/DC) operation
- Mounting plate provides easy and accurate installation
- Fail Safe, but can be installed with a battery backup power supply
- Optional door position switch and anti-tamper switch
- Optional prep for use with 1/2" conduit
- Optional finishes via dress covers include Black, Polished Brass and Satin Brass
- Brackets and accessories to configure any opening
- Indoor use only
- MagnaCare lifetime replacement, no fault warranty
- Holding Force: 4000 lbs. [1814 kg]
- Current Draw and Voltage:
- AC Current: 130 mA max at 12 VAC, 250 mA max at 24 VAC
- DC Current: 100 mA max at 12 VDC, 200 mA max at 24 VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
- Shipping Weight: 6 lbs
- UL Listed
- Certifications and Listings
- UL/cUL GWXT.R13976 /GWXT7.R13976
- UL 10C Fire Rated, 1 hour
- UL Certificate of Compliance (CoC)
- CAN/ULC-S533 Listed
- MM15 - Underwriter's Laboratories: File R21226
