12VDC MOTORIZED ELECT STRIKE FOR MORTISE LOCK
BRAND
Securitron
SES #
SEC MUNL12
MFG #
MUNL-12
UPC
No UPC Set
Your Price
Usually ships between 3-7 business days

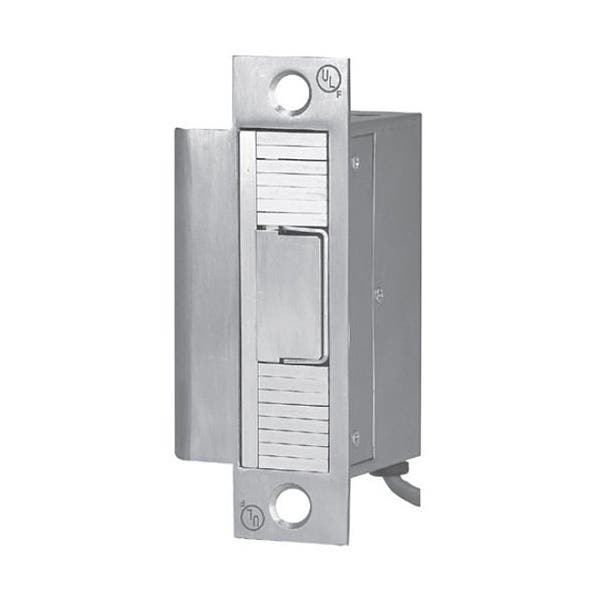

Mortise UnLatch is for any application where an electric strike would be used for a mortise type lock. The Mortise UnLatch includes field adjustability for latch and deadlatch positions, releases under pressure and includes a latch status monitoring output.
- No cutting or altering of the jamb required
- Releases under preload
- Fits standard ANSI 4-7/8" strike cutout
- Motorized, no solenoids
- Fully concealed installation
- Maintains dead-latch function at all times
- Continuous duty
- Latch status sensor is standard
- One model works with most North American Mortise Locks (Sargent 7900 and 8200 require tab kit model #STK-1 for retrofit installations)
- Product Options
- 12VDC
- 24VDC
- FSUNL for field selectable fail-safe operation
- Holding Force: 1500lbs [680kg]
- Current Draw:
- 12VDC: 40mA continuous, minimum 700mA when operating
- 24VDC: 40mA continuous, minimum 500mA when operating
- Higher capacity supply (1-4 Amps) is recommended for startup inrush to achieve best operation under pre-load
- Operating Temperature: -20 to +125F [-29 to +52C]
- Shipping Weight: 2 lbs [0.91kg]
- Finishes:
- US26D/626 - Stainless Steel
- US10B/613 - Oil Rubbed Bronze
